DRBF50CMIP | IP65-RATED RIG BARS, USED TO HANG VIDEO WALL OVERHEAD
DRBF50CMIP
IP65-RATED RIG BARS, USED TO HANG VIDEO WALL OVERHEAD
Click image to enlarge
DRBF50CMIP
IP65-RATED RIG BARS, USED TO HANG VIDEO WALL OVERHEAD
- UM : EA
- Estimated Weight: 16.0

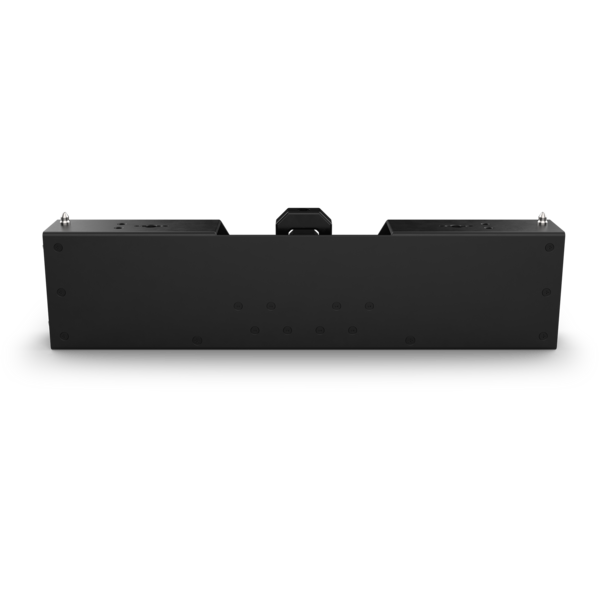

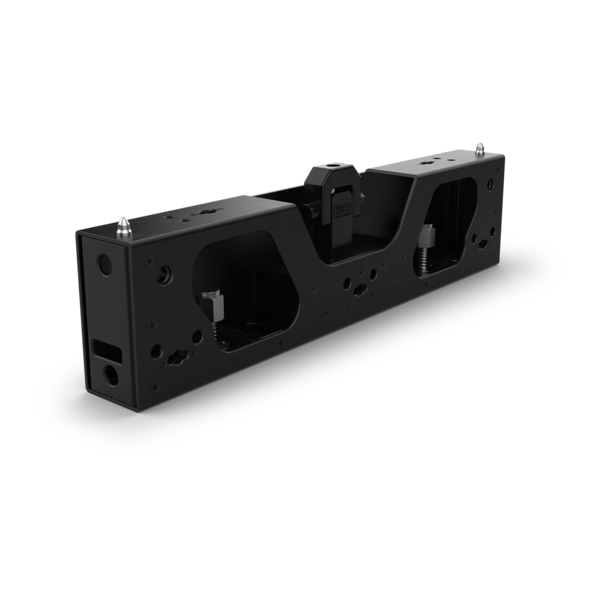

DRB-F50CMIP and DRB-F100CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.
Features:
- Features a rugged, IP65-rated design for reliable outdoor and touring applications.
- Enables both vertical and horizontal orientation of panels for maximum design flexibility.
- Designed for seamless integration with F2, F3X, F5IP, and F4XIP video panels.
- Features an integrated hoist ring for standard 1/2-inch and 5/8-inch shackles.
- Includes a DRB-CTC bracket for direct M12 bolt connection to truss.
- Converts for ground stacking applications with the optional GROUNDSUPPORT2KIT.
| Dimensions | 19.6 x 2.3 x 4.3 in (499 x 60 × 120 mm) |
|---|---|
| Weight | 8.8 lb (3.99 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum extrusion, stainless steel |
| Load Capacity (Hanging) | 970 lb (440 kg) |
| Load Capacity (Stacking) | 2,204.6 lb (1,000 kg) |
| Recommended Shackle Sizes | 1/2″, 5/8″ |
| Certifications | ROHS |
| IP Rating | IP65, temporary outdoor/wet use |
×
×
