DS-CIJ3DC | CONSUMER INPUT JACKS – STEREO (CUSTOM LABELED) (SEE PART # ZCST-LBL FOR SETUP CHARGE)

The D/S-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

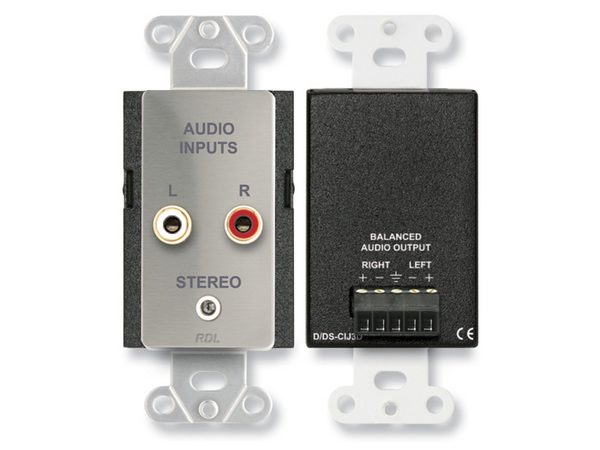

The D/S-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.

Features:

• Stereo Inputs to Stereo Outputs
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 kΩ Equipment Input
• Output Connections on Detachable Terminal Block
• Available in RDL White/Gray (D-CIJ3D)
• Available in Stainless Steel (DS-CIJ3D)
