DS-HA1A | FORMAT-A STEREO HEADPHONE AMPLIFIER - STAINLESS STEEL (COMPATIBLE WITH GUEST ROOM AUDIO SYSTEM)
DS-HA1A
FORMAT-A STEREO HEADPHONE AMPLIFIER - STAINLESS STEEL (COMPATIBLE WITH GUEST ROOM AUDIO SYSTEM)
DS-HA1A
FORMAT-A STEREO HEADPHONE AMPLIFIER - STAINLESS STEEL (COMPATIBLE WITH GUEST ROOM AUDIO SYSTEM)
- UM : EA
The D SERIES-HA1A is a two pair receiver and audio headphone amplifier compatible with RDL Format A twisted pair products. Each -HA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack fed from a Format-A sender. The left and right audio signals received on pairs B and C of the twisted pair cable are amplified and fed to the left and right channels of the output 3.5 mm Mini-jack.

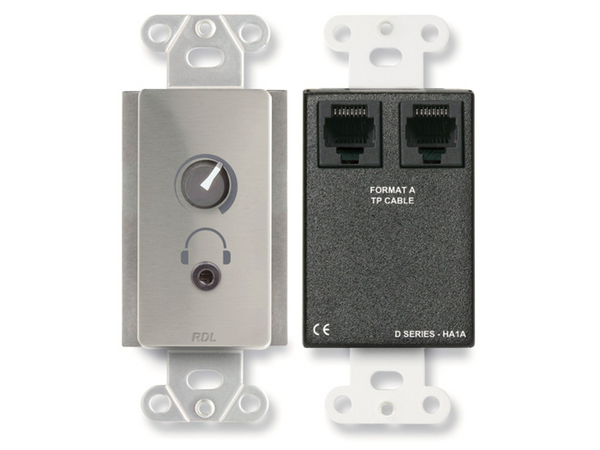

The front panel provides the headphone output jack and a single-turn user volume control. There are no illuminated indicators that could be distracting in dark locations, such as a hotel room. The audio input circuits feature very high common mode rejection and a high quality stereo headphone amplifier for superior audio fidelity and low-noise performance.
The -HA1A is ideally suited to guest room installations with bedside and restroom listening stations. The input is fully compatible with all RDL Format-A senders.
The -HA1A is equipped with two Format-A RJ45 jacks. Either jack may be used as the input. The other RJ45 may be used to connect an additional -HA1A or other Format-A receiver.
Installation is simple and economical. Standard twisted pair cable is used to connect a Format A sender to the -HA1A.
Features:
- Headphone Amplifier with User Level Control
- Output on Standard Mini-Jack
- Mounts in a Wall or Cabinet
- Input and Power Connection on RJ45
- Connects to Format-A Sender using Twisted-Pair Cable
- Powered from RDL Twisted Pair Format-A Sender
- RJ45 Loop-Thru for Connecting Additional Modules
- Protected by Automatically Resetting Fuse
- Decora Design with All Steel Panel and Rear Enclosure
| Dimensions | 1.55" (3.94 cm) D 1.72" (4.37 cm) W 4.11" (10.44 cm) H |
|---|---|
| Power Requirement | 24 Vdc @ 30 mA |
| Power Connection | RJ45 (power provided by Format-A sender) |
| Crosstalk | < -85 dB (1 kHz) < -70 dB (20 Hz to 20 kHz) |
| Noise | < -90 dB (maximum gain) |
| THD+N | < 0.01% (1 kHz, 10 mW) |
| Frequency Response | 10 Hz to 40 kHz (± 1 dB, into 100 Ohms) |
| Output | Stereo, 25 mW per channel (into 100 ohms) |
| Format-A Output | RJ45 (loop-through) |
| Format-A Signal Pairs Used (2) | B, C |
| Input Connection | RJ45 |
| Input | RDL TP Format-A |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.415 lbs. |
| WEEE Weight | 0.265 lbs. |
| Tariff Code | 8543.70.9860 |
