DS-J3MC | MIC/LINE INPUT ASSEMBLY - XLR, MINI-JACK, TERMINAL BLOCK - STAINLESS (CUSTOM LABELED) (SEE PART # ZC

Please reference ZCST-LBL for setup charge.

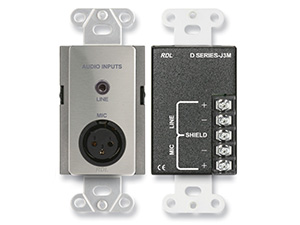

The D SERIES-J3M is a complete audio input panel assembly. The front panel features a female XLR jack and a single stereo mini-jack. The XLR is connected directly to the rear-panel barrier block. The mini-jack is intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3M is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J3M fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U or WB-2U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Features:

• Wall Mounted Audio Inputs
• XLR Microphone Input with Gold Contacts
• Mini-Jack Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs

WEEE weight	0.36 lbs.
Tariff code	8536.69.4030
Input Connectors (2)	XLR female with gold contacts (1) Mini-jack (1)
Shipping Weight	0.505 lbs.
Package Dimensions	3.625 x 4.625 x 2.125 in.
Package Type	Cardboard Box
Mounting Box Req.	Width: 1.80 in. 4.57 cm Depth: 1.75 in. 4.45 cm
Dimensions	Height: 4.13 in. 10.49 cm Width: 1.7 in. 4.32 cm Depth: 2.15 in. 5.47 cm
Frequency Response (line in)	30 Hz to 20 kHz (±1 dB)
Power Requirement	Passive
Output Connector	Terminal block
Output Connections (5)	Line: +, -, SHIELD Mic: SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
