DS-RLC10K | REMOTE LEVEL CONTROLLER - 0 TO 10 K OHM - STAINLESS STEEL
DS-RLC10K
REMOTE LEVEL CONTROLLER - 0 TO 10 K OHM - STAINLESS STEEL
DS-RLC10K
REMOTE LEVEL CONTROLLER - 0 TO 10 K OHM - STAINLESS STEEL
- UM : EA
The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The RLC10K contains a high-quality 10 kΩ potentiometer for setting the control voltage.

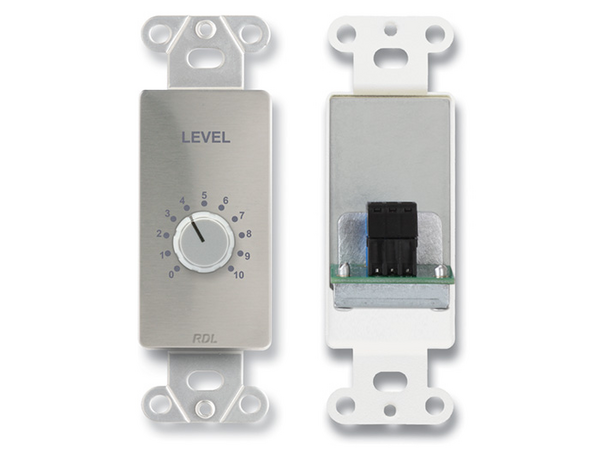

The RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.
Three conductors are required for connection between the RLC10K and an RDL VCA. A single shielded pair is normally used.
All the RLC10K features combine to make it the optimum economical choice for single-point remote level control in high-quality systems. Use the RLC10K individually with an RDL control module, or combine it side-by-side with other RDL remote accessories as part of a complete audio/video system.
Features:
- Remote Level Control Panel
- Single-Turn Rotary Control
- Single Control Location
- Direct Connection to RDL VCA Modules
- Discrete Wiring Connections on Detachable Terminal Block
- Available in Standard RDL White, Stainless or Black
| Mounting | Mounts in US electrical box or RDL international wall boxes WB-1U, WB-2U decorative plate available separately |
|---|---|
| Ambient Operating Environment | -10° C to 55° C |
| Connections | Detachable terminal block |
| Resistance | 0 to 10 kΩ, linear |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.31 lbs. |
| Shipping Weight | 0.465 lbs. |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
