DS-TPS6AC | PASSIVE SINGLE-PAIR SENDER - TWISTED PAIR FORMAT-A - STEREO PHONO JACK INPUTS - STAINLESS (CUSTOM LA

Please reference ZCST-LBL for setup charge.

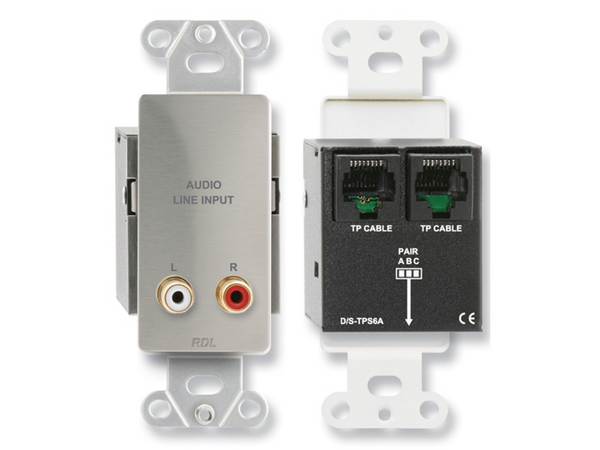

The -TPS6A is a single-pair audio sending module compatible with RDL® Format-A twisted pair products. The front panel features two gold plated phono jacks intended for stereo consumer line level audio sources. A studio-quality transformer provides isolation between the audio source and the RJ45 TP CABLE.

The -TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to a TP CABLE jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The -TPS6A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C.

The -TPS6A is a passive module that does not require power to operate. If power is present on a cable connected to a TP CABLE jack, that power is passed through to the modules connected to the other TP CABLE jack.

Features:

• Stereo Audio Input Combined to Mono Output
• Input on Dual RCA Jacks
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
• Passive Circuitry Does Not Require Power
• Galvanic Isolation through a Studio-Quality Transformer
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders

Input	2 RCA jacks, unbalanced stereo combined to mono
Input Level	-10 dBV, +22 dBu max
Format-A Signal Pair Used	Switch-selectable A, B, or C (rear-panel switch)
Format-A Input	RJ45 TP CABLE
Ouput	RJ45 TP CABLE, RDL TP Format-A
Frequency Response	20 Hz to 20 kHz (±0.5 dB)
THD	< 0.1% (50 Hz to 20 kHz) <0.001% (1 kHz typ)
Power Requirement	Passive
Dimensions	1.6” (4.06 cm) W 4.11” (10.45 cm) H 1.89” (4.8 cm) D
Package Type	Cardboard Box
Tariff code	8543.70.9860
WEEE weight	0.38 lbs.
Shipping Weight	0.53 lbs.
Package Dimensions	3.625 x 4.625 x 2.125 in.
