DSA125X4 | 4 CHANNEL AMPLIFIER, 500 TOTAL WATTS, WITH DSP & INTERNAL WAP

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4 CHANNEL AMPLIFIER, 500 TOTAL WATTS, WITH DSP & INTERNAL WAP
4 CHANNEL AMPLIFIER, 500 TOTAL WATTS, WITH DSP & INTERNAL WAP
Click image to enlarge
4 CHANNEL AMPLIFIER, 500 TOTAL WATTS, WITH DSP & INTERNAL WAP
4 CHANNEL AMPLIFIER, 500 TOTAL WATTS, WITH DSP & INTERNAL WAP

DSA125X4
4 CHANNEL AMPLIFIER, 500 TOTAL WATTS, WITH DSP & INTERNAL WAP

  • UM : EA

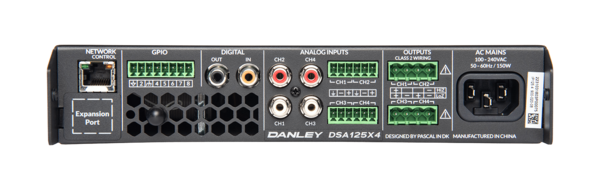

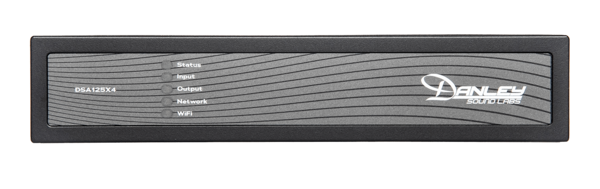

The DSA125X4 is a four-channel installation amplifier with integrated WiFi capability. It includes a built-in Wireless Access Point (WAP) for wireless connection and configuration.

The amplifier features a full matrix digital signal processor (DSP) controllable via TCP/IP. It supports both low and high impedance load configurations.

Channels 4 Lo-Z / 2 Hi-Z
Output power all channels driven 125W Lo-Z / 250W Hi-Z
Output power single channel driven 125W
Output power at 16ohms all channels driven 125W
Power Consumption 150W
Output Circuitry UMAC Class D full bandwidth PWM modulator with ultra-low distortion
OutputVage 70Vp / 140Vpp unloaded; bridged 140Vp / 280Vp unloaded
THD+N < 0.05% (8ohm load, 3dB below rated power)
Frequency Response 20Hz – 20kHz (8ohm load, 3dB below rated power)
Protection Circuits Short circuit, DC, undervoltage, temperature, and overload protection
