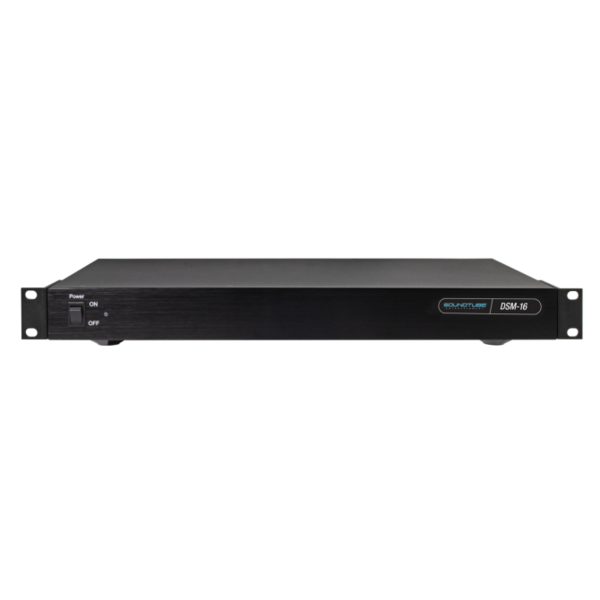

DSM-16 | DANTE SYSTEM MANAGER, 16X16 DSP MATRIX W/ DANTE

DSM-16
DANTE SYSTEM MANAGER, 16X16 DSP MATRIX W/ DANTE

The SoundTube DSM-16 is a full featured system manager for Dante end point-end point distributed audio systems. It is part of the SoundTube Dante ecosystem It is designed to bridge the gap between conventional distributed audio system and enterprise systems using powerful DSP’s. It incorporates features needed for applications ranging from small installed systems to large sophisticated installations. The DSM’s embedded web server has three levels of control and setup. The installer UI allows full access to all the functionality of the DSM, the zone user level allows for source selection and volume control while the admin has access to all zone source selection and levels.

Features

• Full-featured web-browser setup UI

• Individual Zone UI

• Admin UI

• 16x16 Dante/AES67 enabled system manager

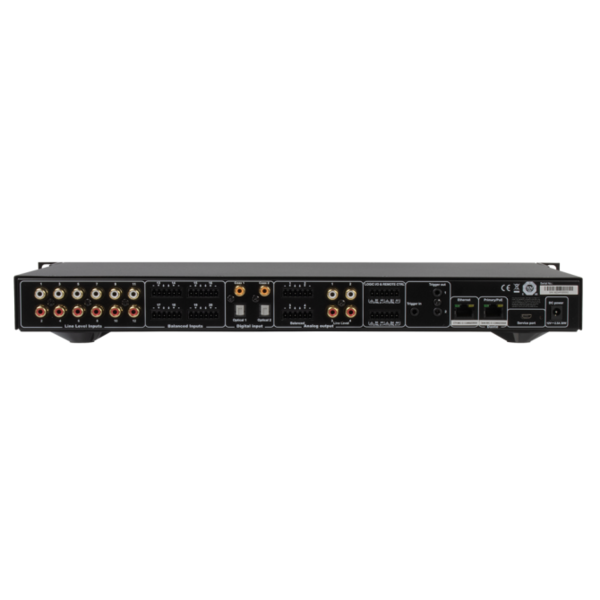

• Inputs:

  • 8 Dante inputs

• 12 line level inputs

• 8 balanced inputs

• 2 optical inputs

• 2 coax inputs

• 1 12V trigger input

• Outputs:

• 16 Dante outputs

• 4 balanced outputs

• 4 line level outputs

• 2 12V trigger outputs

• 4 GPIO ports for Logic I/O and Remote volume control. 2 dedicated Dante and Ethernet ports, one for control purposes and the other for accessing and con­guring the Dante network, ensuring seamless connectivity.

• Full-featured web-browser control software setup
