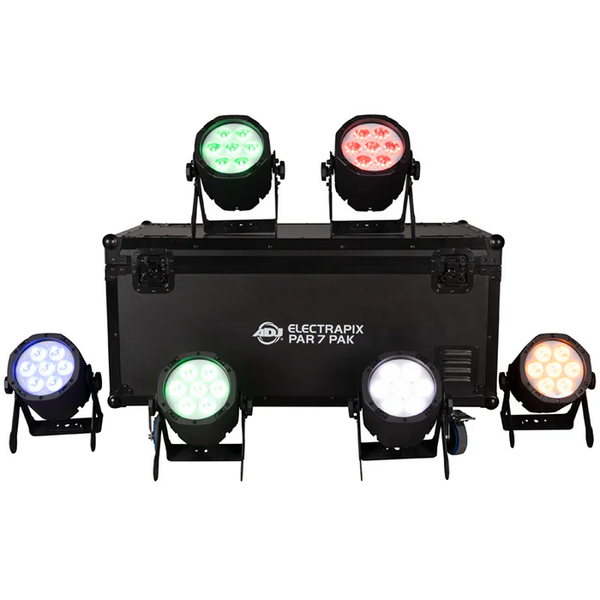

ELE738 | ELECTRAPIX PAR 7 PAK; (6) ELECTRAPIX PAR 7 FIXTURES (BATTERY POWERED, WIRELESS DMX LED PARS) & CASE

ELE738
ELECTRAPIX PAR 7 PAK; (6) ELECTRAPIX PAR 7 FIXTURES (BATTERY POWERED, WIRELESS DMX LED PARS) & CASE

The ADJ ElectraPix Par 7 Pak (ELE738) is a professional-grade battery-powered RGBW LED PAR lighting kit designed for mobile production, event lighting, staging, and uplighting applications. The system includes six ElectraPix Par 7 fixtures, a dedicated road-ready charging case, and all required power and charging accessories. Each fixture features seven 10W RGBW LEDs, delivering smooth color mixing, strong output, and flicker-free performance suitable for live events and video applications.

Each ElectraPix Par 7 operates on an internal rechargeable lithium battery, allowing fully wireless deployment without external power or data cabling. The fixtures support DMX control (wired and wireless), IR remote operation, and multiple standalone modes, including sound active and auto programs. The included charging case provides organized transport and simultaneous charging, making the ElectraPix Par 7 Pak a complete, ready-to-deploy solution for DJs, rental houses, production companies, and integrators needing flexible, cable-free PAR lighting.

ElectraPix Par 7 Pak Includes:

·         (6) ElectraPix Par 7 (Fixtures)

·         (1) ElectraPix Par 7 FC (Flight Case)

·         (6) ElectraPix Par 7 IPCB (Charging bases and power supplies)

·         (1) UC-IR24 Wireless Infrared Controller

·         (6) IP65 Locking Power Cable

ElectraPix Par 7 Pak Features:

·         Houses / Transports and Charges (6) ElectraPix Par 7™ fixtures

ElectraPix Par 7 Pak Dimensions / Weight (loaded case (Must be used with 6 fixtures):

·         Length: 40.4" (1026 mm)

·         Width: 22.7" (577 mm)

·         Vertical Height: 22.3" (567 mm)

·         Loaded Weight: 197.3 Ibs. (89.5 kg)

Flight Case Electrical / Thermal:

·         Power Input: AC100VAC~240VAC, 50/60Hz

·         IP65 Power Locking Input and Output

·         Max Power Consumption: 400 Watts

·         Power Draw: 4A @120VAC or 2A @ 230VAC

·         Charge status indicator

·         14°F to 113°F (-10°C to 45°C)

ElectraPix Par 7 Fixture Source:

·         (7) 20W Hex Color RGBAL+UV Foreground LED's

·         (29) 0.2W RGB Background LED's

·         50,000 Hour Average Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/ Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

·         2,300K ~ 9,900K White Color Temperature Range

·         17º Beam Angle

·         45mm Lens Diameter x7

Physical:

·         IP65 Housing

·         OLED Digital display

·         L Track system for locking accessories / rigging

·         Gel Frame Holder

·         Adjustable, hanging / kick stand bracket

Control:

·         DMX512

·         Aria X2 Wireless DMX

·         Bluetooth

·         RDM and RDM Net Compatible

·         IR (Includes UCIR24 wireless remote)

·         (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 60

·         Channel modes)

·         On-board Manual Control Mode

·         Primary / Secondary Mode

Connections:

·         5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

·         Outdoor Locking Power Sockets

·         Battery Charging Socket

Dimensions Weight:

·         Length: 11.11* (282.1mm)

·         Width: 9.8* (248mm)

·         Height: 7.46 (189.5mm)

·         Weight: 18.1 Ibs. (8.2 kg)

Power:

·         AC100-240V/50Hz-60Hz Input

·         90W Power Consumption

·         Link 10 pieces @120VAC or 18 pieces @ 230VAC

Battery:

·         Rechargeable Lithium ion

·         Battery Capacity: 12,000m Ah

·         Battery Voltage: 22.2V

·         Charge Time, AC Power: 5 Hours (To Full)

·         Charge Time, Flight Case: 7 Hours (To Full)

·         Battery operation can be selected by the user for dura-tons ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged

·         Battery Cycles: 500

Thermal:

·         Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

·         Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications IP Rating:

·         CE

·         cETLus (Control # 4002034)

·         FCC

·         IP65
