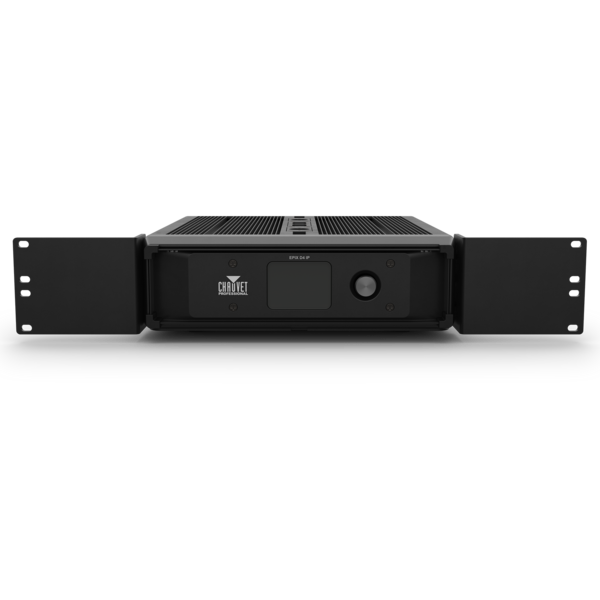

ÉPIX D4 IP is a 4-port drive housing the ÉPIX mapping system – built to easily detect, configure, and control outdoor-rated ÉPIX Line 10 IP and ÉPIX Line 10 IP S linear pixel strips. Its powerful processing unit handles addressing with the intuitive KLSTR push-and-pull mapping system, allowing users to focus on layouts and concepts.
ÉPIX D4 IP is the heart of this latest generation ÉPIX family that introduces a revolutionary new standard in video mapping and a robust new ecosystem. Users can easily create simple and effective designs with the app as well as push highly complex designs and visions through a scalable workflow using industry-standard MVR files.
Designed with modularity, serviceability, and universal connectivity at its core, ÉPIX D4 IP delivers full creative freedom, scalability, and industry-leading efficiency to lighting designers, systems designers, and rental and production houses.
Features:
- Remote power supply and processing module for ÉPIX line products
- Supports MVR with GDTF onboard, creating a seamless production flow from design to playback at the lighting desk
- Utilizes ÉPIX Mapping System to detect, configure, and control ÉPIX line products
- Industrial design accommodates the rental/touring and Installation applications
- Supports RSTP with automatic signal backup
| Dimensions | 14.05 x 11.8 x 11.4 in (357 x 300 x 289 mm) |
|---|---|
| Dimensions (with rackmount brackets) | 20.24 x 11.8 x 11.4 in (514 x 300 x 289 mm) |
| Weight | 15lb (6.8 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum extrusion, Aluminum die-cast, rubber |
| Rackmount | 2U |
| IP Rating | IP65 |

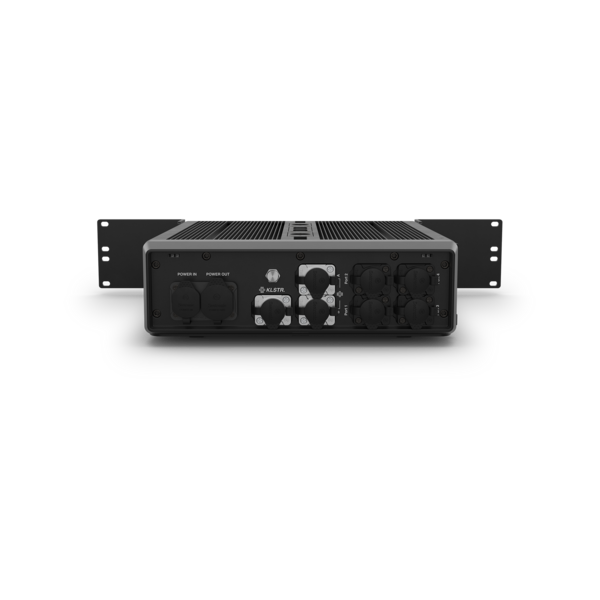

| Power input | Seetronic Powerkon (powerCON Compatible) |
| Power output | Seetronic Powerkon (powerCON Compatible) |
| Device output (4) | 4-pin XLR (IP65) |
| Data connectors (3) | Seetronic etherKON (etherCON Compatible) |
| Intended Load | ÉPIX Line 10 IP, ÉPIX Line 10 IP S |
| Minimum required device linking cable size | 4 conductor (2 x 14 AWG, 2 x 16 AWG) |
| Total max. cable length (shielded cables) between ÉPIX D4 IP and last ÉPIX Line | 210 ft (64 m) |
| Max. cable length (shielded cables) between ÉPIX D4 IP and first ÉPIX Line | 65 ft (20 m) |
| Total max. cable length (unshielded cables) between ÉPIX D4 IP and last ÉPIX Line | 300 ft (91 m) |
| Max. cable length (unshielded cables) between ÉPIX D4 IP and first ÉPIX Line | 150 ft (45 m) |
| Max. cable length (unshielded cables) between each ÉPIX Line | 100 ft (30 m) |
| Compliance | CE, MET, ROHS |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
