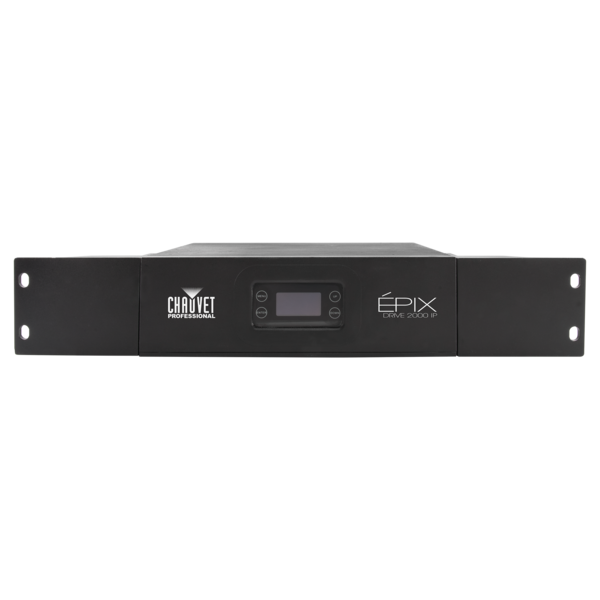

ÉPIX Drive 2000 IP is IP65 outdoor-rated and hosts the processing and power supply for the ÉPIX IP and Tour system. With a maximum capacity of 2000 LEDs, ÉPIX Drive 2000 IP supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ÉPIX fixtures. Using the new 7 and 8 channel operating modes you can quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks.
Features:
- Delivers 20 total Art-Net/sACN universes for intricate, high-resolution pixel mapping.
- Powers extensive fixture arrays, including up to 20 ÉPIX Strip IPs or 36 ÉPIX Strip Tours.
- Features an onboard OLED touchscreen and automatic fixture detection for simplified setup.
- Allows remote system management and diagnostics through a built-in web server.
- Enables flexible placement up to 150 feet away from the first connected fixture.
- Integrates seamlessly with Arkaos Media Master Express via Kling-Net for plug-and-play operation.
| Dimensions | Weight |
|---|---|
| 12 lb (5.4 kg) | Exterior Color |
| Black | Housing Material |
| Aluminum | Rackmount |
| 2U | Power Connection |
| Edison (Local) plug to Seetronic Powerkon IP65 | Power Input |
| Seetronic Powerkon IP65 | Power Output |
| Seetronic Powerkon IP65 | Device Outputs (4-pin XLR) |
| 2 | Physical Linking (port A) |
| 10 inline ÉPIX Strip IP Tour, 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour | Physical Linking (port B) |
| 10 inline ÉPIX Strip IP Tour, 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour | Data Connectors |
| Seetronic Etherkon IP65 | Cable Length (power) |
| 5 ft (1.5 m) | Minimum required device linking cable size |
| 4 conductor (2 x 14 AWG, 2 x 16 AWG) | Total max. cable length (shielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture |
| 210 ft (64 m) | Max. cable length (shielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture |
| 65 ft (20 m) | Max. cable length (shielded cables) between ÉPIX Tour or IP fixtures |
| 60 ft (18 m) | Total max. cable length (unshielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture |
| 300 ft (91 m) | Max. cable length (unshielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture |
| 150 ft (45 m) | Max. cable length (unshielded cables) between ÉPIX Tour or IP fixtures |
| 100 ft (30 m) | Certifications |
| CE, MET | IP Rating |
| IP65, outdoor/wet, with pressure equalizing M12 GORE® valve | Temperature (Ambient) |
| -4 °F to 113 °F (-20 °C to 45 °C) | MET Listing Number |
| E113093-1101 | US Safety |
| UL 8750, UL 1573 | Canadian Safety |
