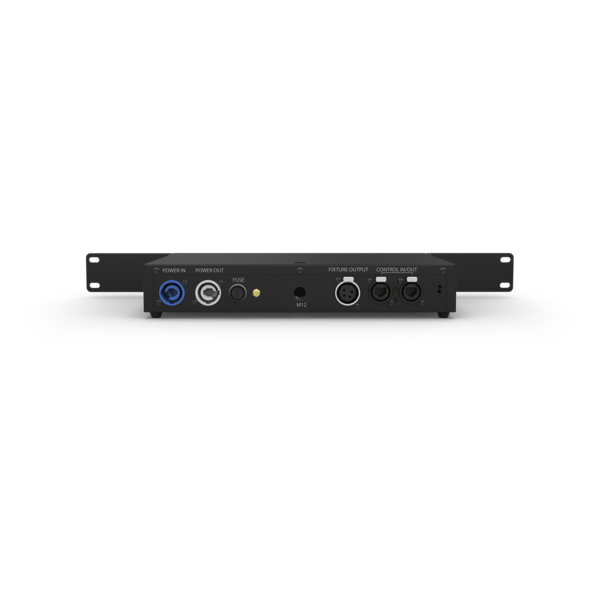

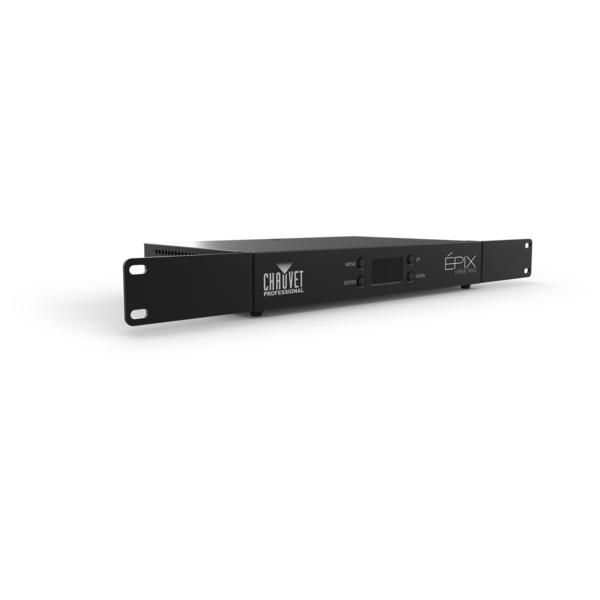

EPIXDRIVE900 | EPIX DRIVE 900 , INCLUDES: POWERCON POWER CORD , CONTROL: ETHERCON,

  • MAP: $900.00 / EA
  • List Price: $1,116.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
EPIX DRIVE 900 , INCLUDES: POWERCON POWER CORD , CONTROL: ETHERCON,
EPIX DRIVE 900 , INCLUDES: POWERCON POWER CORD , CONTROL: ETHERCON,
Click image to enlarge
EPIX DRIVE 900 , INCLUDES: POWERCON POWER CORD , CONTROL: ETHERCON,
EPIX DRIVE 900 , INCLUDES: POWERCON POWER CORD , CONTROL: ETHERCON,

EPIXDRIVE900
EPIX DRIVE 900 , INCLUDES: POWERCON POWER CORD , CONTROL: ETHERCON,

  • UM : EA
  • Estimated Weight: 8.0

ÉPIX Drive 900 hosts the processing and power supply for the ÉPIX Tour system. It supports either 18 ÉPIX Strip Tours or 6 ÉPIX Bar Tours, or any combination of the two, with a total capacity of 900 LEDs ÉPIX Drive 900 supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ÉPIX lights.

Features:

  • Powers and processes data for any combination of ÉPIX fixtures up to 900 LEDs.
  • Provides 6 universes of Art-Net or sACN control for complex pixel mapping designs.
  • Simplifies setup with an auto-address function that detects any connected fixture type.
  • Allows flexible placement up to 65 feet away from the last daisy-chained fixture.
  • Features an onboard OLED display for fast, direct configuration and adjustments.
  • Includes power linking to connect multiple units for streamlined, large-scale systems.
Power ConnectionEdison (Local) plug to Neutrik powerCON
Power InputNeutrik powerCON
Power OutputNeutrik powerCON
Device Outputs (4-pin XLR)1
Physical Linking18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour
Data ConnectorsNeutrik etherCON
Cable Length (power)5 ft (1.5 m)
Minimum required device linking cable size4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX Tour fixtures60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX Tour fixtures100 ft (30 m)
CertificationsCE, MET
IP RatingIP20, dry location
Temperature (Ambient)-4 °F to 113 °F (-20 °C to 45 °C)
