EPIXL10IPS | EPIX LINE 10 IP S

  • MAP: $415.00 / EA
  • List Price: $477.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
EPIX LINE 10 IP S
EPIX LINE 10 IP S
Click image to enlarge
EPIX LINE 10 IP S
EPIX LINE 10 IP S

EPIXL10IPS
EPIX LINE 10 IP S

  • UM : EA
  • Estimated Weight: 17.0

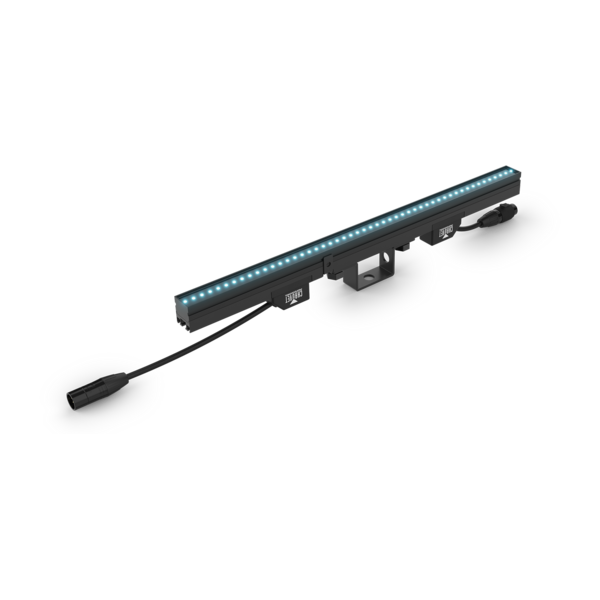

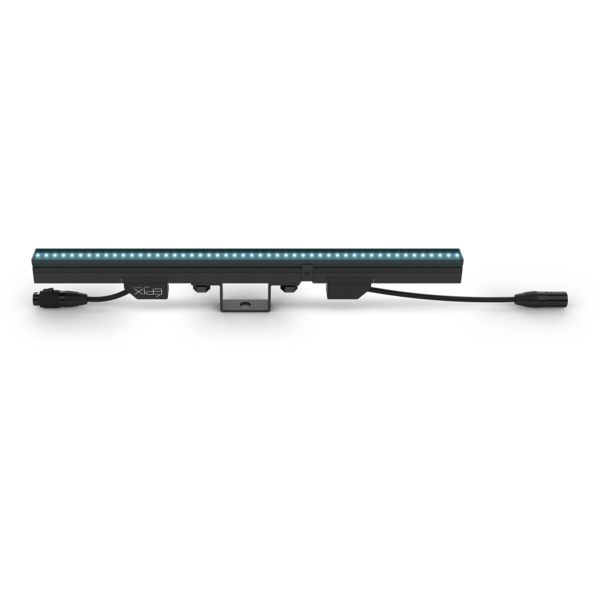

ÉPIX Line 10 IP S delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPIX D4 IP Drive, this compact 0.5-meter outdoor-rated linear pixel strip offers native compatibility with the ÉPIX Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.

Features:

  • Outdoor-Rated Pixel Strip – Linear LED strip with 10 mm pixel pitch delivers vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.
  • Flexible Connectivity & Optics – Standard 4-pin XLR connectors and three included optical filters support multiple use cases, including wide viewing angles.
  • Compact & Serviceable Design – Slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower service costs.
  • Streamlined Setup – Native compatibility with the ÉPIX Mapping System and MVR support makes configuration fast and intuitive.
Light Source50 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
Beam Angle114.6°
Field Angle161.9°
Viewing Angle170°
Lumens581.2
Pixel Pitch10 mm
Display Refresh Rate4900 Hz
Power Supply (remote driver)ÉPIX D4 IP
Physical Linking (Standard Mode)20 inline ÉPIX Line 10 IP S
Physical Linking (Hi Power Mode)13 inline ÉPIX Line 10 IP S
Data Connectors4-pin IP65 XLR
Minimum required device linking cable size4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between ÉPIX D4 IP and last ÉPIX Line210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX D4 IP and first ÉPIX Line65 ft (20 m)
Max. cable length (shielded cables) between each ÉPIX Line60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX D4 IP and last ÉPIX Line300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX D4 IP and first ÉPIX Line150 ft (45 m)
Max. cable length (unshielded cables) between each ÉPIX Line100 ft (30 m)
ComplianceCE, MET, FCC, ETL, UKCA, etc.
Operating Temperature-4 °F to 122 °F (-20 °C to 50 °C)
