EPIXSTRIPTOUR | EPIX STRIPTOUR CONTROL: 4-PIN XLR REQUIRES EPIX DRIVE 900, RATIO OF 1 DRIVE TO 18 STRIPS
EPIXSTRIPTOUR
EPIX STRIPTOUR CONTROL: 4-PIN XLR REQUIRES EPIX DRIVE 900, RATIO OF 1 DRIVE TO 18 STRIPS
Click image to enlarge
EPIXSTRIPTOUR
EPIX STRIPTOUR CONTROL: 4-PIN XLR REQUIRES EPIX DRIVE 900, RATIO OF 1 DRIVE TO 18 STRIPS
- UM : EA
- Estimated Weight: 24.0

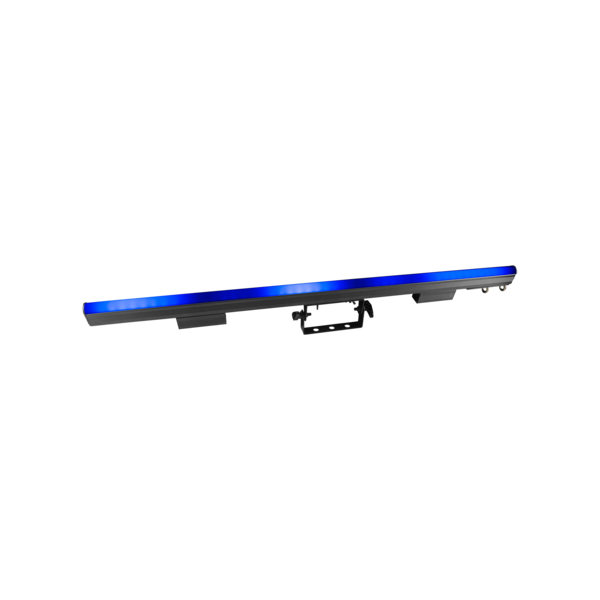

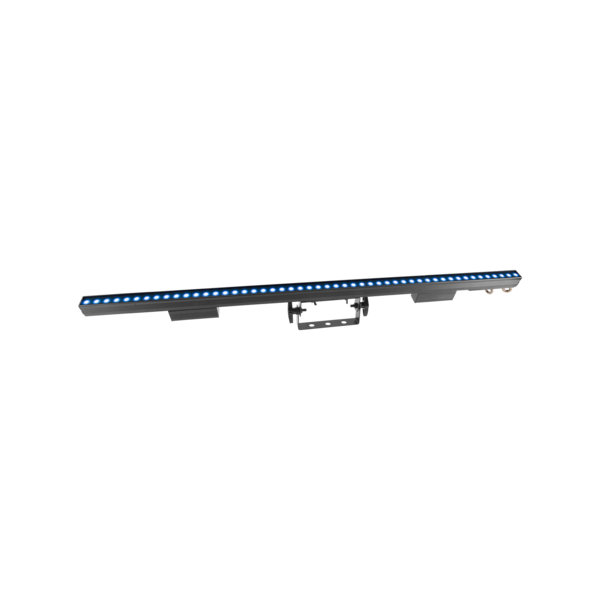

ÉPIX Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125º viewing angle. Power and control it through the ÉPIX Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN).
Features:
- Features 50 individually-mappable, tri-color RGB SMD LEDs for vibrant motion graphics.
- Includes both a high-contrast black stealth filter and a high-output white frosted filter.
- A 20 mm pixel pitch ensures high-definition looks for close and distant viewing.
- Integrates easily into professional setups using Art-Net, Kling-Net, and sACN.
- Requires the ÉPIX Drive 900 for centralized power and data distribution.
- Delivers up to 1,094 NITS of brightness with the included white frosted filter.
| Light Source | 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy |
|---|---|
| Viewing Angle | 125° |
| Illuminance – white frost filter (included) | 1,094 NITS |
| Illuminance – black stealth filter (installed) | 267 NITS |
| Pixels | 50 x 1 |
| Pixel Pitch | 20 mm |
| Refresh Rate | 4,700 Hz |
| Certifications | CE, MET |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
×
×
