EQP-TCVR | EQUIP TRANSCEIVER

  • MAP: $960.00 / EA
  • List Price: $960.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
EQUIP TRANSCEIVER
Click image to enlarge

EQP-TCVR
EQUIP TRANSCEIVER

  • UM : EA

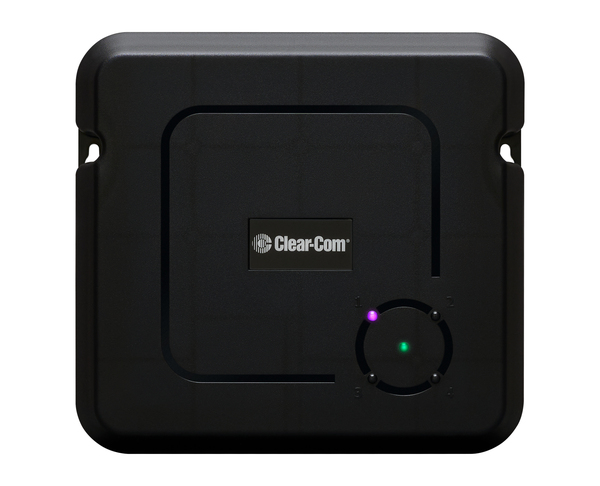

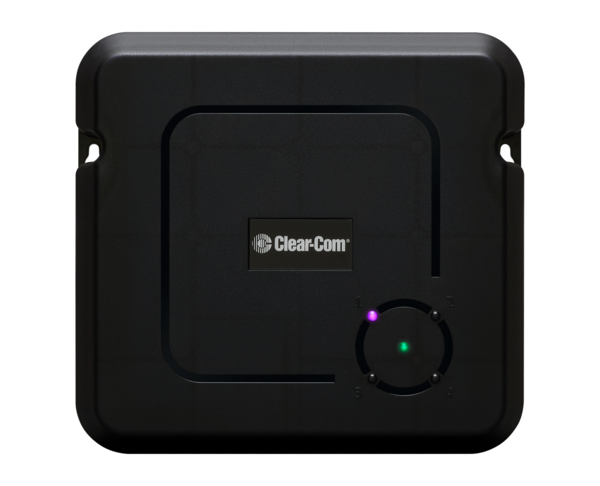

The EQP-TCVR is a digital remote transceiver designed for use with EQUIP wireless intercom systems.

Features:

  • Power and audio to transceivers
  • Remote monitoring from EQUIP base station
  • 5 GHz license-free radio band
  • Single CAT5/6 cable to EQUIP base
  • Centrally powered from EQUIP base station
  • Site survey mode for transceiver placement
  • 40 wireless headsets per system
  • Status LEDs
Transport ProtocolData and Audio with power up to 500 ft from the EQUIP Base
Front Panel ConnectionsLED type: 5 x RGB, one for power and 4 for connection status
Rear Panel ConnectionsRJ45 port
Main Radio Frequency Range5.180 – 5.8525GHz
Voltage48V DC (powered from EP-BASE)
Current60 mA pk-pk @ 48 V
Power2.88W
Operating32º-125ºF (0º-50ºC)
Storage32º-150ºF (0º-70ºC)
HumidityBetween 20% and 90%, Non-Condensing
