ES8544 | 3-PIN XLR POWER MODULE

  • MAP: $119.00 / EA
  • List Price: $119.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 15
  • Sign In or Submit RFQ for accurate lead times
3-PIN XLR POWER MODULE

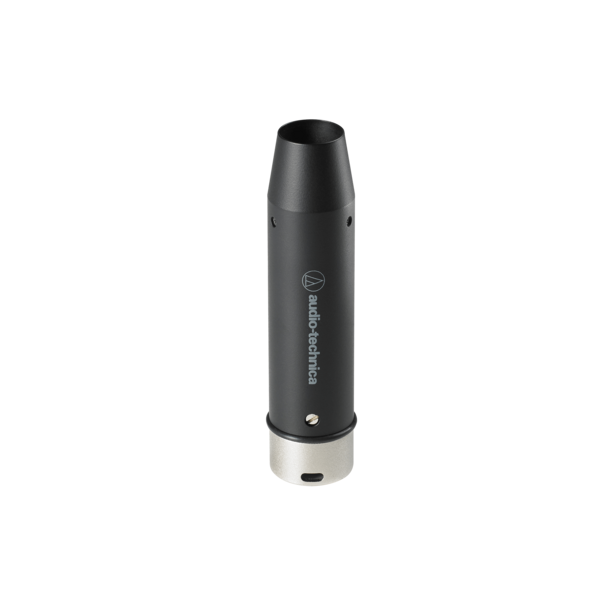

Click image to enlarge

ES8544
3-PIN XLR POWER MODULE

  • UM : EA
  • Estimated Weight: 0.6

The ES8544 3-pin XLR power module works with ES925 goosenecks and microphone elements. The power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using the included quick-mount stand adapter.

Specifications
Impedance: 130 ohms
Phantom Power Requirements: 11-52V DC
Switch: LED Color
Weight: 68 g (2.4 oz)
Dimensions: 20.2 mm (0.80") diameter, 80.8 mm (3.18") height
Output Connector: Integral 3-pin XLRM-type
Accessories Furnished: Set screw (M2 x 2); hex wrench

Features

  • 3-pin XLR power module for use with ES925 goosenecks and microphone elements
  • Power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using included quick-mount stand adapter
  • Included low-profile universal isolation mount attenuates noise, shock and vibration
  • Remote LED control with ATUC products and AT8699R desk stand
