ES947C/FM3 | CARDIOID CONDENSER BOUNDARY MICROPHONE WITH 3-PIN XLR OUTPUT AND LOCAL MUTING (BLACK)

ES947C/FM3
CARDIOID CONDENSER BOUNDARY MICROPHONE WITH 3-PIN XLR OUTPUT AND LOCAL MUTING (BLACK)

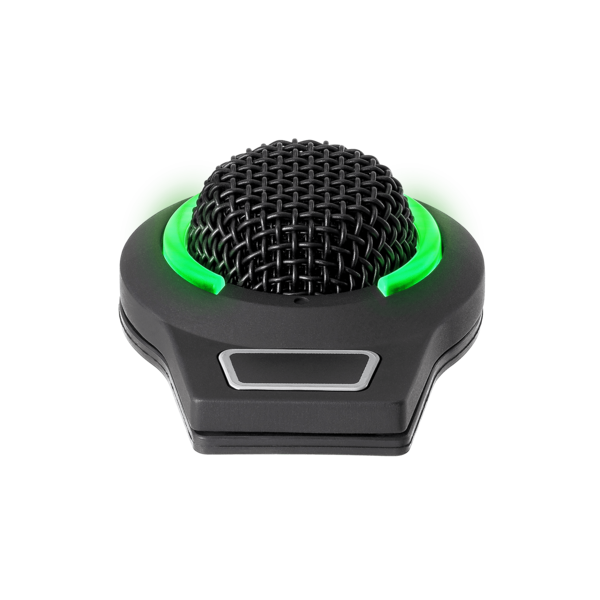

This phantom-powered cardioid condenser boundary microphone features a 3-pin XLR output connector with a capacitive touch switch that enables local muting of the microphone.

Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES947C/FM3 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colors + OFF) to indicate mute status.

The microphone’s cardioid polar pattern provides a 120° pickup angle. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).

The ES947C/FM3 is equipped with a self-contained power module, eliminating the need for an external one, and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

See below for the entire family of ES945O and ES947C boundary microphones:

-          ES945O/XLR
Water-resistant Omnidirectional Condenser Boundary Microphone with XLR Output

-          ES947C/XLR
Water-resistant Cardioid Condenser Boundary Microphone with XLR Output

-          ES945O/TB3
Miniature Omnidirectional Condenser Boundary Microphone with TB3-to-XLR Output

-          ES947C/TB3
Miniature Cardioid Condenser Boundary Microphone with TB3-to-XLR Output

-          ES945O/FM3
Omnidirectional Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting

-          ES947C/FM3
Cardioid Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting

-          ES945O/FM5
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting

-          ES947C/FM5
Cardioid Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting

Features

• Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
• Capacitive touch switch enables local muting of the microphone
• Highly visible two-state RGB LED ring (7 selectable colors + OFF) indicates mute status
• Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
• Mounts unobtrusively in tabletops and panels
• Self-contained power module with 3-pin XLR output connector
• Rugged all-metal case with a two-layer steel mesh grille
• Rubber Isolators provide mechanical dampening of mounting-surface vibration
• Requires 11V to 52V DC phantom power
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• RoHS compliant—free from all substances specified in the EU directive on hazardous substances
