EVEE100Z | POWERFUL SPOT FIXTURE FEATURING SHARP PATTERN PROJECTION WITH A 100 W WARM WHITE LED LIGHT SOURCE
EVEE100Z
POWERFUL SPOT FIXTURE FEATURING SHARP PATTERN PROJECTION WITH A 100 W WARM WHITE LED LIGHT SOURCE
EVEE100Z
POWERFUL SPOT FIXTURE FEATURING SHARP PATTERN PROJECTION WITH A 100 W WARM WHITE LED LIGHT SOURCE
- UM : EA
- Estimated Weight: 15.0

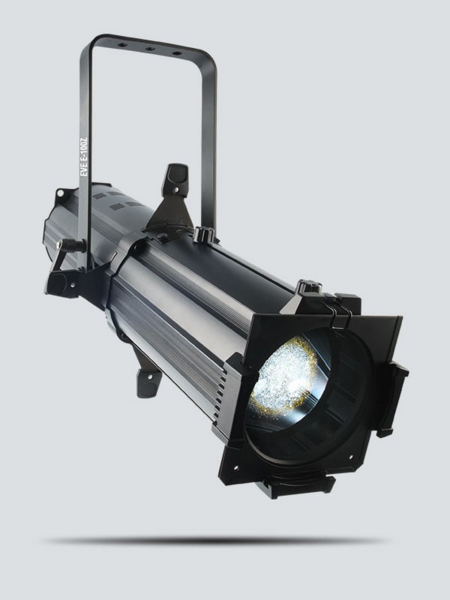

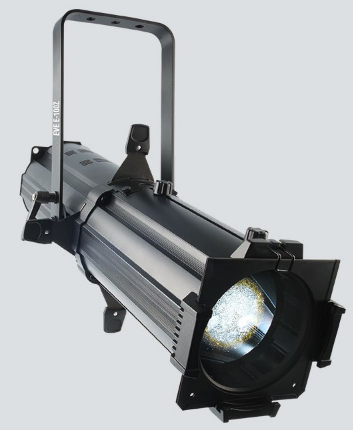

The Chauvet DJ EVE E-100Z is a powerful LED ellipsoidal spotlight designed for theatrical productions, events, and stage lighting. Featuring a 100W warm white LED engine, this fixture delivers crisp, high-output illumination with precise edge control. The adjustable zoom (20°–38°) allows for flexible beam shaping, while the included framing shutters offer precise light control. With DMX compatibility, manual dimming, and silent fanless operation, the EVE E-100Z is ideal for noise-sensitive environments such as houses of worship, theaters, and studios. The fixture also supports gel frame and gobo projection, making it a versatile choice for professional lighting applications.
Features:
- LED Ellipsoidal shines a hard-edged, warm white spot in any direction
- Easily highlight areas by altering the projected beam with framing shutters
- Flexibility to project from any distance using the manual zoom
- Flicker-free operation suitable for on-camera use
- Includes holders for glass and steel gobos and a gel frame
- Save time running extension cords by power linking multiple units
- Eliminate the need for DMX control with standalone operation

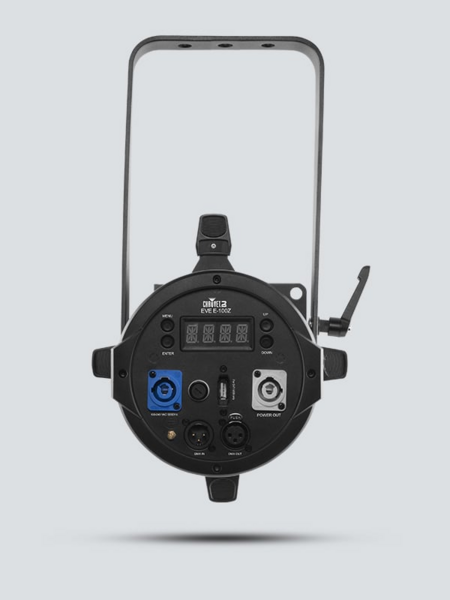

| DMX Channels | 1 or 3 |
|---|---|
| DMX Connectors | 3-pin XLR |
| Light Source | 1 LED (warm white) 100 W (2.3 A), 50,000 hours life expectancy |
| Strobe Rate | 0 to 30 Hz |
| Zoom Angle | (manual): 14° to 30° |
| Illuminance | (14°): 15,100 lux @ 2 m(30°): 3,800 lux @ 2 m(14°): 3,238 lux @ 5 m(30°): 829 lux @ 5 m |
| Power Linking | 9 units @ 120 V; 16 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 106 W, 0.9 A @ 120 V, 60 Hz103 W, 0.5 A @ 230 V, 50 Hz |
| Gobo Size | M (66 mm outside, 48 mm image, 2 mm max thickness) |
| Weight | 12.6 lb (5.7 kg) |
| Size | 24 x 7.2 x 16.9 in (611 x 183 x 430 mm) |
| Approvals | CE, MET |
| CRI | 80 |
| Color Temperature | 3,500 K |
| Accessory Holder/Gel Frame Size | 6.3 x 6.3 in (160 x 160 mm)/6.24 x 6.24 in (158.5 x 158.5 mm) |
