EVEE50Z | LED ELLIPSOIDAL THAT SHINES A HARD-EDGED, WARM WHITE SPOT/FEATURES D-FI USB COMPATIBILITY
EVEE50Z
LED ELLIPSOIDAL THAT SHINES A HARD-EDGED, WARM WHITE SPOT/FEATURES D-FI USB COMPATIBILITY
EVEE50Z
LED ELLIPSOIDAL THAT SHINES A HARD-EDGED, WARM WHITE SPOT/FEATURES D-FI USB COMPATIBILITY
- UM : EA
- Estimated Weight: 13.2

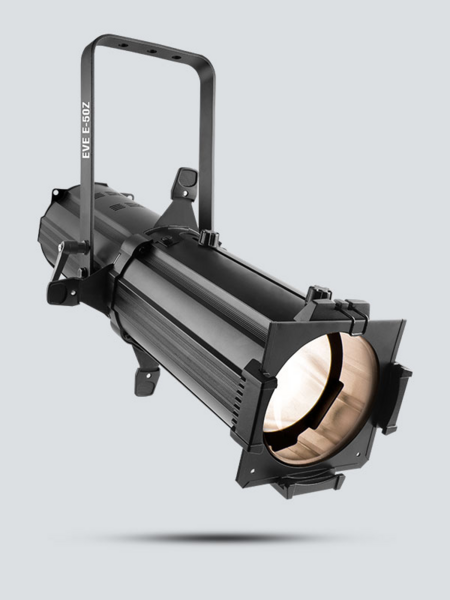

EVE E-50Z is an LED ellipsoidal that shines a hard-edged, warm white spot designed for mobile and installation applications. It features D-Fi™ USB compatibility for wireless Master/Slave or DMX control. Manual zoom gives you the flexibility to project from any distance and its framing shutters let you easily alter and control the projected beam. EVE E-50Z includes holders for glass and steel gobos as well as a gel frame. You can operate EVE E-50Z in standalone mode eliminating the need for DMX control and you can save time running extension cords by power linking multiple units. White housing not available in European Markets.
Features
LED Ellipsoidal shines a hard-edged, warm white spot in any direction
Easily highlight areas by altering the projected beam with framing shutters
Flexibility to project from any distance using the manual zoom
D-Fi USB compatibility for wireless Master/Slave or DMX control
Flicker-free operation suitable for on-camera use
Includes holders for glass and steel gobos and a gel frame
Save time running extension cords by power linking multiple units
Eliminate the need for DMX control with standalone operation
Available in black or white
|
DMX Channels |
1 or 3 |
|

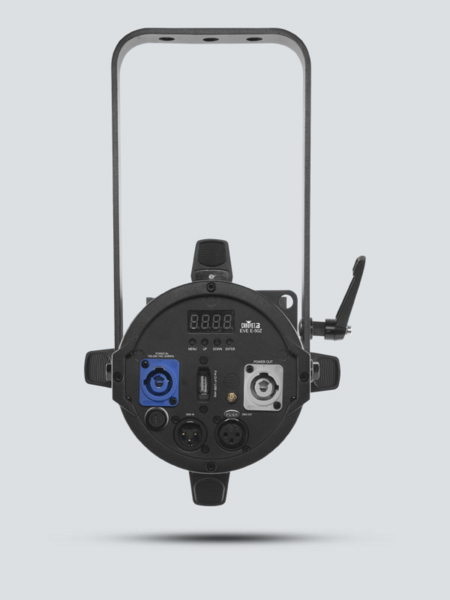

DMX Connectors |
3-pin XLR |
|
Light Source |
1 LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy |
|
Strobe Rate |
0 to 29 Hz |
|
PWM Frequency |
1.2 kHz |
|
Zoom Angle: (manual) |
20° to 39 |
|
Illuminance: (20°) |
7,910 lux @ 2 m; (39°): 2,710 lux @ 2 m; (20°): 1,479 lux @ 5 m; (39°): 508 lux @ 5 m |
|
Power Linking |
16 units @ 120 V; 26 units @ 230 V |
|
Input voltage |
100 to 240 VAC, 50/60 Hz (auto-ranging) |
|
Power and Current |
59 W, 0.5 A @ 120 V, 60 Hz; 63 W, 0.3 A @ 230 V, 50 Hz |
|
Gobo Size |
D (53.3 mm outside, 43 mm image, 2mm max thickness) |
|
Weight |
9.2 lb (4.2 kg) |
|
Size |
18.9 x 6.2 x 15 in (480 x 157 x 381 mm) |
|
Approvals |
CE, MET |
|
Color Temperature |
3500 K |
|
Gel Frame Size |
5.5 in (140 mm) |
|
Optional Controllers |
D-Fi USB |
|
CRI |
80 |
