EVEF160ZQ | FULL-COLOR FRESNEL, BUILT-IN ZOOM OPTICS, 160W QUAD-COLOR
EVEF160ZQ
FULL-COLOR FRESNEL, BUILT-IN ZOOM OPTICS, 160W QUAD-COLOR
Click image to enlarge
EVEF160ZQ
FULL-COLOR FRESNEL, BUILT-IN ZOOM OPTICS, 160W QUAD-COLOR
- UM : EA
- Estimated Weight: 15.0
Bring color to the stage with EVE F-160ZQ, a full-color fresnel suitable for both mobile and installation. It has a 160W quad-color (RGBW) light source. With flicker-free operation for on-camera use and pre-set color temperature ranges that simplify the lighting design process, light up the stage with EVE F-160ZQ.
Features:
- Full-color Fresnel designed for mobile and installation applications
- Integrated zoom optics ensure subject remains in the spotlight from a wide range of distances
- Pre-set color temperature ranges eliminate the need for manual color blending
- Flicker-free operation suitable for on-camera use
- D-Fi USB compatibility for wireless master/slave or DMX control

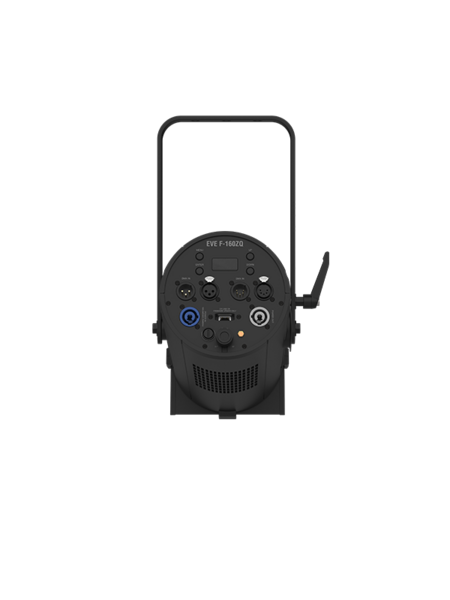

- powerCON-compatible power input/output connections for power linking
| DMX Channels | 3, 4 or 11 |
|---|---|
| DMX Connectors | 3- and 5-pin XLR |
| Light Source | 1 LED (quad-color RGBW) 160 W, (7.3 A), 50,000 hours life expectancy |
| Beam Angle | 16° - 61° |
| Field Angle | 29° - 90° |
| Power Linking | 9 units @ 120 V 16 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Weight | 12.2 lb. (5.5 kg) |
| Size | 18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm) |
| Approvals | CE, RoHS, MET |
| Accessory Holder Size | 6.25 in |
| Color Temperature Range | 2800 K – 8000 K |
| Strobe Rate | 1 to 30 Hz |
| Illuminance (24°) | 7072 lux @ 2 m |
| Illuminance (37°) | 2964 lux @ 2 m |
| Illuminance (24°) | 1132 lux @ 5 m |
| Illuminance (37°) | 474 lux @ 5 m |
| CRI | 96 |
| Optional Controllers | DMX |
| Power and Current | 150 W, 1.3A @ 120 V, 60 Hz |
| Power and Current | 150 W, 0.7 A @ 230 V, 50 Hz |
×
×
×
