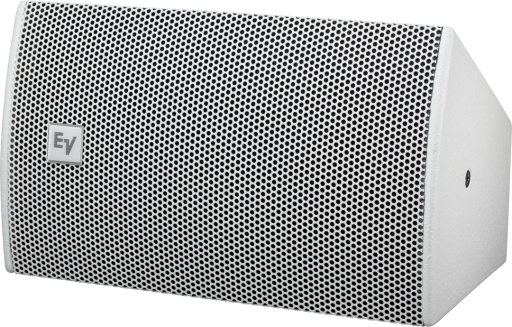

EVU-1082/95-WHT | ULTRACOMPACT 2-WAY SPEAKER W/SINGLE 8" WOOFER, 90º X 50º ROTATABLE WAVEGUIDE / WHITE
EVU-1082/95-WHT
ULTRACOMPACT 2-WAY SPEAKER W/SINGLE 8" WOOFER, 90º X 50º ROTATABLE WAVEGUIDE / WHITE
EVU-1082/95-WHT
ULTRACOMPACT 2-WAY SPEAKER W/SINGLE 8" WOOFER, 90º X 50º ROTATABLE WAVEGUIDE / WHITE
- UM : EA
- Estimated Weight: 23.0
The Electro-Voice EVU-1082/95 (White) is a compact, high-performance two-way loudspeaker designed for professional installed sound applications. Featuring an 8-inch LF driver and a 1-inch HF titanium diaphragm compression driver, this speaker delivers exceptional clarity and full-range audio reproduction. The 90° x 50° rotatable Constant Directivity waveguide ensures precise coverage, making it ideal for houses of worship, auditoriums, hospitality venues, and commercial AV installations. With a discreet white enclosure for seamless integration, the EVU-1082/95 offers versatile mounting options, robust construction, and high output capability, providing reliable performance in fixed installation environments.
- Sonically matched to all EV-Innovation lines
- Sophisticated 18-dB-octave passive crossover/EQ networks
- Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
- Optional Neutrik Speakon(R) connector panel
- One 1.3-inch (33 mm) diaphragm I compression driver
- U-bracket included
- Optional 70 V and 100 V operation
- OmniMount(R)-compatible rear mounting points
- Available in black or white (interior use)
- Ultracompact 10 x 16 inch enclosure
- 90º x 50º rotatable waveguide
- Ultra-high power handling for size: 175 W continuous
- 123 dB Max SPL
- Asymmetrical trapezoidal enclosure design
- Compatible with OmniMount
|
Frequency Range (-10 dB) |
65 - 20000kHz (Half Space) |
|
Suspension |
(6) M8 threaded points |
|
Weatherized |
No |
|
Minimum Impedance |
6O |
|
HF Transducer |
One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver |
|
Speaker Type |
Full-Range, Two-Way |
|
Frequency Response (-3 dB)¹ |
110 - 16000Hz (Half Space) |
|
Max. SPL/1m (calc)² |
123dB |
|
Coverage (Nominal -6 dB) H |
90° |
|
LF Transducer |
One 8-inch (203 mm) ICT-8-8 woofer |
|
Coverage (Nominal -6 dB) V |
50° |
|
Power Rating |
700W |
|
System Power Handling (Continuous/Program/Peak) |
175//700Watts (EIA RS-426A (eight hours)) |
|
Connector Type |
4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) |
|
Enclosure Material |
9-ply hardwood plywood |
|
Grille |
18-gauge steel with cloth behind |
|
Available Color |
Black or white |
|
Height |
9.72" (247mm) |
|
Width |
16.1" (409mm) |
|
Recommended High-Pass Frequency |
90Hz |
|
Depth |
9.33" (237mm) |
|
Weight Net |
16.31lbs (7.4kg) |
|
Shipping Weight |
22.71lbs (10.3kg) |
|
Nominal Impedance |
8O |
|
Finish |
Textured paint |
|
Waveguide |
6 in. x 6 in., rotatable |
|
Axial Sensitivity (SPL, 1 W @ 1 m) |
95dB |
|
Passive Power Handling |
700W peak |
