EW 500 BOOM G4-GW1 | PORTABLE PLUG-ON WIRELESS SET. INCLUDES (1) SKP 500 G4 PLUG-ON TRANSMITTER WITH PHANTOM POWER,
EW 500 BOOM G4-GW1
PORTABLE PLUG-ON WIRELESS SET. INCLUDES (1) SKP 500 G4 PLUG-ON TRANSMITTER WITH PHANTOM POWER,
EW 500 BOOM G4-GW1
PORTABLE PLUG-ON WIRELESS SET. INCLUDES (1) SKP 500 G4 PLUG-ON TRANSMITTER WITH PHANTOM POWER,
- UM : EA
- Estimated Weight: 2.0
The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.

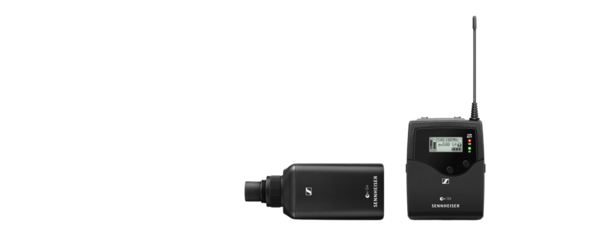

The phantom power-equipped SKP 500 plug-on transmitter adapts any wired shotgun or handheld microphone for a wide range of wireless applications, from field interviews to off-camera boom work.
Features:
- Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and flexible wireless synchronisation between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100 meters / 330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
- With 48 V phantom powering
| Receiver principle | Adaptive diversity |
|---|---|
| RF sensitivity | < 1.6 µV for 52 dBA eff S/N |
| Total harmonic distortion (THD) | = 0.9 % |
| Audio frequency response (Hz) | 80 – 18,000 Hz |
| Audio frequency response | 80 to 18,000 Hz |
| Signal-to-noise ratio | Line: = 110 dBA |
| Squelch | low: 5 dBµV middle: 15 dBµV high: 25 dBµV |
| Audio output | 3.5 mm jack socket: +17 dBu (mono, balanced) |
| Battery operating time (h) | Typically 8 h |
| Input impedance | 68 kO, unbalanced |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Height (mm) | 73 |
| Length (mm) | 405 |
| Weight (g) | (incl. batteries) approx. 130 g |
| Width (mm) | 172 |
| Product height | 73 |
| Product weight (g) | (incl. batteries) approx. 130 g |
| Product width | 172 |
