EW-D SKM-S (R4-9) | DIGITAL HANDHELD TRANSMITTER WITH MUTE SWITCH. INCLUDES (1) SET AA BATTERIES,
EW-D SKM-S (R4-9)
DIGITAL HANDHELD TRANSMITTER WITH MUTE SWITCH. INCLUDES (1) SET AA BATTERIES,
_1.png)
EW-D SKM-S (R4-9)
DIGITAL HANDHELD TRANSMITTER WITH MUTE SWITCH. INCLUDES (1) SET AA BATTERIES,
- UM : EA
- Estimated Weight: 1.0

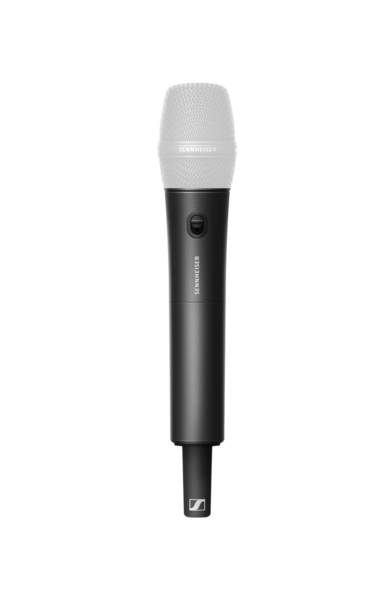

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This handheld transmitter is compatible with a wide range of Sennheiser and Neumann microphone capsules.
Features:
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
| Total harmonic distortion (THD) | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
|---|---|
| Latency (ms) | 1.9 ms |
| Polar pattern | Cardioid |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Dynamic range (>) | 134 dB |
| Max. sound pressure level | 154 dB SPL |
| Operating relative humidity (≤ %) | 5 - 95 % (non-condensing) |
| Operating temperature (C) | -10 °C - +55 °C (14 °F - 131 °F) |
| Charging current (mA) | < 300 mA |
| Sensitivity | 2.1 mV/Pa |
| Input voltage | 2.0 - 4.35 V |
| Transmission power (mA) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions | 50 x 268 mm (incl. MMD 835 microphone module) |
| Height (mm) | 73 |
| Length (mm) | 350 |
| Weight (g) | approx. 304 g (incl. MMD 835 microphone module) |
| Width (mm) | 81 |
| Product height | 268 mm (10.55") |
| Product weight (g) | approx. 304 g (0.67 lbs) (incl. MMD 835 microphone module) |
| Product width | 50 mm (1.97") |
| Bluetooth transmission frequency | 2402 - 2480 MHz |
