EW-DX TS 5-PIN (R1-9) | WIRELESS TABLE STAND TRANSMITTER, 5-PIN XLR CONNECTOR, FOR MEG 14-40-L-II B

  • MAP: $799.00 / EA
  • List Price: $949.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 4
  • Sign In or Submit RFQ for accurate lead times
WIRELESS TABLE STAND TRANSMITTER, 5-PIN XLR CONNECTOR, FOR MEG 14-40-L-II B

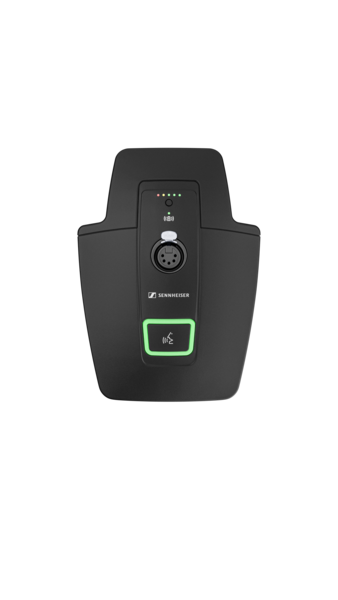

Click image to enlarge

EW-DX TS 5-PIN (R1-9)
WIRELESS TABLE STAND TRANSMITTER, 5-PIN XLR CONNECTOR, FOR MEG 14-40-L-II B

  • UM : EA

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.
EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.

Features:

  • Tablestand transmitter with 5-pin XLR connector
  • Programmable mute switch
  • Inductive charging with CHG 2W
  • Charging via USB
  • 10 h runtime with BA 40 lithium-ion battery
  • Compatible with MEG 14-40 L-II B gooseneck microphone
  • Metal housing
Latency (ms) 1.9 ms
RF sensitivity < -90 dBm
Total harmonic distortion (THD) ≤ -60 dB for 1 kHz @ -3 dBfs input level
Frequency range 520 - 607.8 MHz
Frequency response 75 to 20,000 Hz
Audio frequency response 20 Hz - 20 kHz (-3 dB)
Signal-to-noise ratio > 90 dB(A)
Dynamic range (>) 134 dB
Sampling rates 24 bit/48 kHz
Audio input XLR 5F
Operating relative humidity (≤ %) 5 - 95 % (non-condensing)
Operating temperature (C) -10 °C - +50 °C (14 °F - 122 °F)
Charging current (mA) < 300 mA
Battery operating time (h) BA 40 rechargeable battery pack
Input voltage 2.0 - 4.35 V
Input impedance 30 kΩ
Output power Audio Link: 10 mW
Bluetooth Low Energy: max. 10 mW EIRP
Transmission power (mA) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP
Transmission method 200 kHz
Weight (g) approx. 660 g (excl. BA 40)
Product height 120.2 mm (4.73")
Product weight (g) approx. 650 g (1.43 lbs)
Product width 48.1 mm (1.89")
Bluetooth transmission frequency 2402 - 2480 MHz
