EZ-ADA4 | STEREO AUDIO DISTRIBUTION AMPLIFIER - 1X4

  • MAP: $193.95 / EA
  • List Price: $258.60 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • In Stock
STEREO AUDIO DISTRIBUTION AMPLIFIER - 1X4
Click image to enlarge

EZ-ADA4
STEREO AUDIO DISTRIBUTION AMPLIFIER - 1X4

  • UM : EA
  • Estimated Weight: 1.0

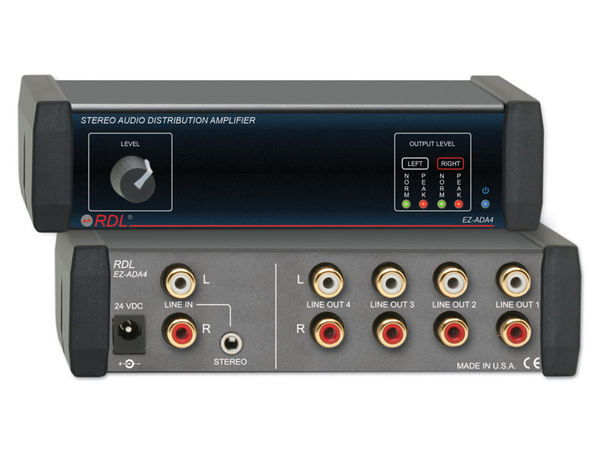

The EZ-ADA4 is a stereo audio distribution amplifier with gain adjustment and audio level metering. The input is connected through RCA jacks or a mini-jack. A front-panel knob adjusts for high or low input levels using the left and right channel LED VU meters. Four stereo outputs are provided on RCA jacks. The EZ-ADA4 is used in stores, houses of worship, restaurants, clubs, security systems and commercial A/V systems.

Features:

  • One Stereo Input to Four Stereo Outputs
  • Unbalanced Inputs on MINI or RCA Jacks
  • Unbalanced Outputs on RCA Jacks
  • Inputs and Outputs on Rear Panel
  • Front-Panel LEVEL Control
  • Dual-LED VU Meter for Each Channel
  • Gold-Plated Connectors
  • Front-Panel Stereo Audio Metering
  • Knob for Easy Level Adjustment
Inputs (2) Stereo on dual RCA jacks or stereo mini jack, > 10 kΩ, −10 dBV nominal, +22 dBV max.
Level control Off to 12 dB gain above nominal
Outputs (4) Stereo on dual RCA jacks, −10 dBV nominal, +16 dBV max.
Frequency Response 10 Hz to 20 kHz (±0.01 dB)
THD+N < 0.03%
Crosstalk <−80 dB (1 kHz)
Metering Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Noise <−85 dB (below −10 dBV output)
24 Vdc power supply current 20 mA (idle), 60 mA (max.)
Case dimensions 5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size ⅓ rack width.
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.565 lbs.
Shipping Weight 0.95 lbs.
Package Dimensions 9.5 x 7 x 2.25 in.
