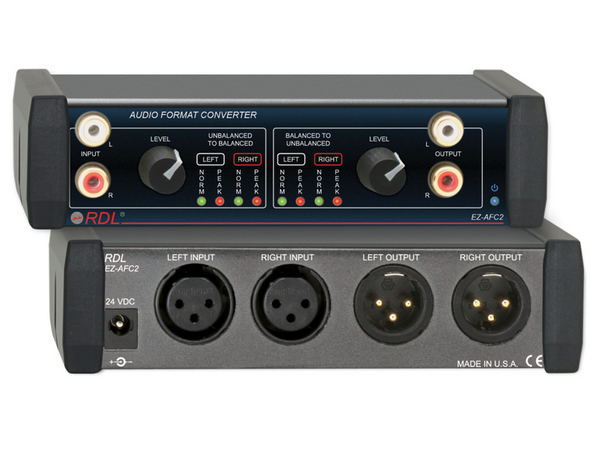

The EZ-AFC2 is a stereo bi-directional audio format converter with level controls. Conversion is provided between balanced rear-panel XLR jacks and unbalanced front-panel RCA jacks. LED VU metering is provided for all audio channels facilitating adjustment for high or low input levels. The bi-directional format allows the EZ-AFC2 to fully convert the stereo input and stereo output of a consumer audio product to professional balanced standards. The EZ-AFC2 is used in houses of worship, studios, sound booths, home component systems and commercial sound systems.
Features:
- Unbalanced to Balanced Audio Conversion
- Balanced to Unbalanced Audio Conversion
- Unbalanced RCA Connections on Front Panel
- Balanced XLR Connections on Rear Panel
- Front-Panel LEVEL Controls
- Gold-Plated Connectors
- Front-Panel Stereo Audio Metering
- Knob for Easy Level Adjustment
- Exceptional Headroom and Frequency Response
- Dual-LED VU Meter for Each Channel
| UNBALANCED TO BALANCED SECTION | |
|---|---|
| Input | Stereo on dual RCA jacks, > 10 kΩ, -10 dBV nominal, +16 dBV max. |
| Level control | Off to 12 dB gain above nominal |
| Output | Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max. |
| Frequency Response | 10 Hz to 50 kHz (±0.01 dB) |
| THD+N | < 0.01% |
| Metering | Dual-LED VU Meter for Left and Right, calibrated to +4 dBu output |
| Crosstalk | < 75 dB (1 kHz) |
| Noise | < -85 dB (below +4 dBu output). |
| BALANCED TO UNBALANCED SECTION | |
| Input | Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max. |
| Level control | Off to 12 dB gain above nominal |
| Output | Stereo on dual RCA jacks, -10 dBV nominal, +17 dBV max. |
| Frequency Response | 10 Hz to 50 kHz (±0.01 dB) |
| THD+N | < 0.003% |
| Crosstalk | < 80 dB (1 kHz) |
| CMRR | > 50 dB (50 Hz to 120 Hz) |
| Metering | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
| Noise | < -75 dB (below +4 dBu output) |
| 24 Vdc power supply current | 45 mA (idle), 90 mA (max.) |
| Case dimensions | 5.75” (14.6 cm)W x 3” (7.6 cm)D |
| Mounting size | 1/3 rack width. |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.615 lbs. |
| Shipping Weight | 1.015 lbs. |
| Package Dimensions | 9.5 x 7 x 2.25 in. |
