EZ-AVX4 | COMPOSITE VIDEO AND STEREO AUDIO INPUT SWITCHER - 4X1

  • MAP: $271.83 / EA
  • List Price: $362.44 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
COMPOSITE VIDEO AND STEREO AUDIO INPUT SWITCHER - 4X1

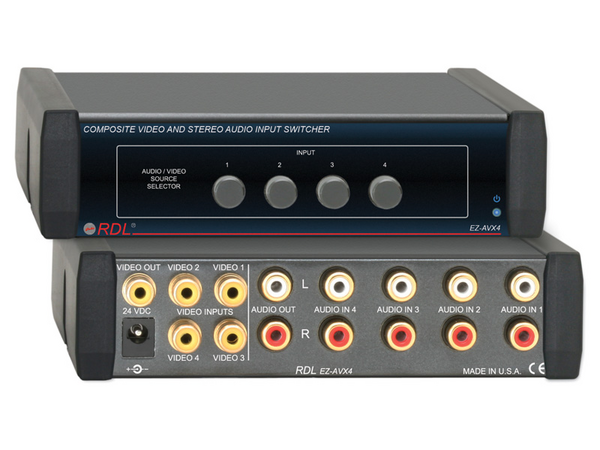

Click image to enlarge

EZ-AVX4
COMPOSITE VIDEO AND STEREO AUDIO INPUT SWITCHER - 4X1

  • UM : EA

The EZ-AVX4 is a stereo audio and composite video source selector. Line-level audio and video outputs are provided on RCA jacks. This unit is ideal as a four input source selector feeding an associated video monitor or recorder. The EZ-AVX4 is used in stores, houses of worship, restaurants, clubs, security systems and commercial A/V systems.

Features:

  • Four Input Source Selection
  • Video Inputs Accept NTSC or PAL Signals
  • Unbalanced Stereo Audio Inputs and Output
  • Simultaneous Audio and Video Switching
  • Audio and Video on Color-Coded RCA Jacks
  • Inputs and Outputs on Rear Panel
  • Full-Size Interlocking Pushbuttons on Front Panel
  • Gold-Plated Connectors
  • Easy-to-Push Large Buttons
  • Solid-State Audio and Video Switching
  • Switch Noise Cannot Affect Signal Quality
AUDIO SECTION
Inputs (4) Stereo on dual RCA jacks, > 10 kΩ, -10 dBV nominal, +10 dBV max.
Gain Unity, nominal
Output Stereo on dual RCA jacks, -10 dBV nominal, +10 dBV max.
Frequency Response 10 Hz to 20 kHz (±0.01 dB)
THD+N < 0.02%
Off Attenuation > 95 dB
VIDEO SECTION
Inputs (4) RCA Jacks, 1Vp-p, 75 Ω
Gain Unity, nominal
Output RCA Jack, 1Vp-p, 75 Ω
Bandwidth > 350 MHz
Differential gain < 0.1%
Differential phase < 0.1%
Off Attenuation > 40 dB @ 10 MHz
Noise < -90 dB ( 1 Vp-p video, 75 Ω)
24 Vdc power supply current 85 mA (idle), 100 mA (max.)
Case dimensions 5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting size 1/3 rack width
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.815 lbs.
Shipping Weight 1.205 lbs.
Package Dimensions 9.5 x 7 x 2.25 in.
