STEREO HEADPHONE DISTRIBUTION AMP - 1X6 REAR-PANEL OUTPUTS

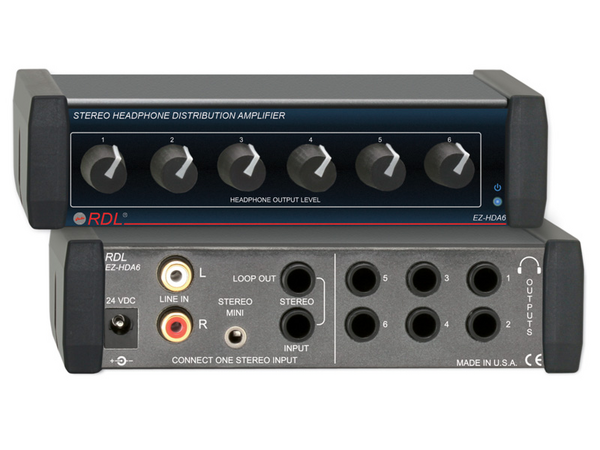

Click image to enlarge

EZ-HDA6
STEREO HEADPHONE DISTRIBUTION AMP - 1X6 REAR-PANEL OUTPUTS

  • UM : EA

The EZ-HDA6 contains six stereo headphone amplifiers with individual front-panel volume controls. Headphone outputs are provided on rear-panel 1/4" jacks. One input signal feeds all the amplifiers. Stereo RCA jacks, a mini-jack and a dual 1/4" jack (for "loop out" connection) are provided for connecting the input source. The EZ-HDA6 is used in music stores, houses of worship, studios, museums, home component systems and commercial sound systems.

Features:

  • One Stereo Input to Six Stereo Outputs
  • Unbalanced Inputs on Rear Panel
  • Input on MINI, 1/4″ (6.3 mm) or RCA Jacks
  • LOOP OUT Jack for 1/4″ (6.3 mm) Input
  • 1/4″ (6.3 mm) Headphone Outputs on Rear Panel
  • Front-Panel LEVEL Control for Each Output
  • Gold-Plated RCA Input Connectors
  • Each Output is Driven Separately
  • Knobs for Easy Level Adjustment
Inputs (3) Stereo on dual RCA jacks, stereo mini jack or 1/4” (6.3 mm) TRS, > 10 kΩ, -10 dBV nominal, +8.5 dBV max. (RCA and 1/4”), -16 dBV nominal, +2 dBV max. (Mini)
Stereo input LOOP OUT 1/4” (6.3 mm) TRS
Frequency Response 20 Hz to 50 kHz (±1.5 dB, 100 Ω load)
Level control Off to +2.5 dB gain (RCA and 1/4” inputs, 100 Ω output load), Off to +9 dB gain (Mini input, 100 Ω output load)
Outputs (7) Stereo on 1/4” (6.3 mm) TRS (6, rear panel), 60 mW (100 Ω load)
THD+N < 0.1% (10 mW output, 100 Ω load)
Crosstalk < -75 dB (1 kHz)
Noise < -95 dB (below 10 mW output, 100 Ω load, maximum gain
24 Vdc power supply current 50 mA (idle), 80 mA (max.)
Case dimensions 5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size 1/3 rack width
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.65 lbs.
Shipping Weight 1.06 lbs.
Package Dimensions 9.5 x 7 x 2.25 in.
