STEREO AUDIO INPUT SWITCHER WITH HEADPHONE AMP - 4X1

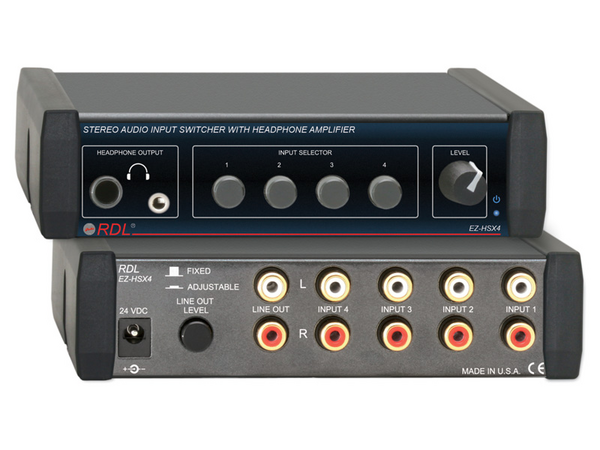

Click image to enlarge

EZ-HSX4
STEREO AUDIO INPUT SWITCHER WITH HEADPHONE AMP - 4X1

  • UM : EA

The EZ-HSX4 is a stereo audio source selector with an output volume control. Line-level and headphone outputs are provided. This unit is ideal as a four input headphone amplifier and as a source selector feeding an associated audio amplifier. The EZ-HSX4 is used in stores, houses of worship, studios, sound booths, home component systems and commercial sound systems.

Features:

  • Four Input Source Sel+E327ection
  • Unbalanced Stereo Audio Inputs and Output
  • Inputs and Line Output on Rear-Panel RCA Jacks
  • Line Output Switchable Fixed (Unity Gain) or Variable
  • Variable Output Follows Front-Panel Level Control
  • Headphone Output on 1/4″ (6.3 mm) and Mini-Jacks
  • Headphone Output Follows Front-Panel Level Control
  • Full-Size Interlocking Pushbuttons on Front Panel
  • Easy-to-Push Large Buttons
  • Solid-State Audio Switching
  • Switch Noise Cannot Affect Signal Quality
Inputs (4) Stereo on dual RCA jacks, > 10 kΩ, -10 dBV nominal, +10 dBV max.
Level control Off to +12 dB gain
Outputs (3) Stereo on dual RCA jacks (line level, -10 dBV nominal, +10 dBV max. fixed, +17 dBV max. variable), 1/4” (6.3 mm) TRS or Mini jack (2 headphone, 35 mW, 100 Ω load)
Frequency Response 10 Hz to 20 kHz (line output ±0.05 dB,headphone output ±1.25 dB, 100 Ω load)
THD+N < 0.03% (line output), < 0.1% (headphone output, 10 mW, 100 Ω load)
Crosstalk < -70 dB (1 kHz)
Noise < -100 dB (headphone, below 10 mW output, 100 Ω load)
Noise < -80 dB (variable output, below -10 dBV, unity gain), < -95 dB (fixed output, below -10 dBV)
24 Vdc power supply current 40 mA (idle), 50 mA (max.)
Case dimensions 5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting size 1/3 rack width
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.825 lbs.
Shipping Weight 1.215 lbs.
Package Dimensions 9.5 x 7 x 2.25 in.
