EZ-MX4L | STEREO LINE-LEVEL AUDIO MIXER - 4X1

  • MAP: $223.42 / EA
  • List Price: $297.89 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
STEREO LINE-LEVEL AUDIO MIXER - 4X1

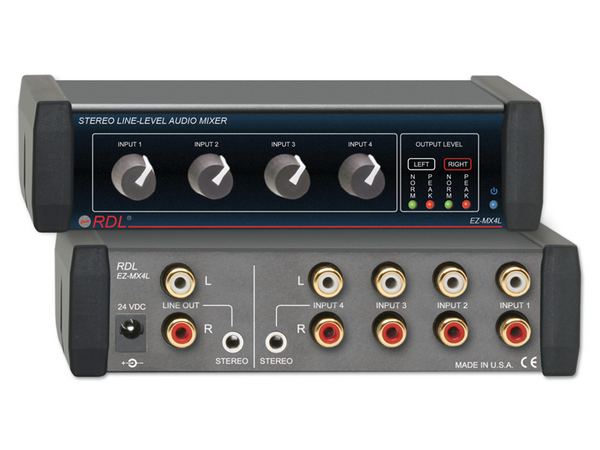

Click image to enlarge

EZ-MX4L
STEREO LINE-LEVEL AUDIO MIXER - 4X1

  • UM : EA

The EZ-MX4L is a stereo audio mixer with four line inputs. All line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The line output is available on stereo RCA jacks or on a MINI-jack. The EZ-MX4L is used in houses of worship, restaurants, clubs, meeting rooms, studios, home component systems and commercial sound systems.

Features:

  • Four Channel Line-Level Audio Mixer
  • Three Unbalanced Line Inputs on RCA Jacks
  • One Line Input on MINI or RCA Jacks
  • Unbalanced Output on MINI or RCA Jacks
  • Dual-LED VU Meter for Each Channel
  • Headroom Accomodates High Input Level
  • Exceptional Headroom for an Unbalanced Mixer
  • Gold Plated RCA Input and Output Jacks
  • Audio VU Metering Facilitates Adjustment
Inputs (5) > 10 kΩ, -10 dBV nominal on RCA jacks (4) or Mini Jack (1), +20 dBV max.
Level controls (4) Off to 12 dB gain
Outputs (2) -10 dBV nominal on RCA jacks (1) or Mini jack (1, stereo), +16 dBV max.
Frequency Response 10 Hz to 20 kHz (±0.01 dB, line)
THD+N < 0.05%
Crosstalk < -72 dB (1 kHz)
Metering Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Noise < -85 dB (below -10 dBV output)
24 Vdc power supply current 30 mA (idle), 60 mA (max.)
Case dimensions 5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size 1/3 rack width
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.59 lbs.
Shipping Weight 0.985 lbs.
Package Dimensions 9.5 x 7 x 2.25 in.
