EZ-MX4ML | MIC AND STEREO LINE AUDIO MIXER - 4X1

  • MAP: $237.01 / EA
  • List Price: $316.02 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
MIC AND STEREO LINE AUDIO MIXER - 4X1

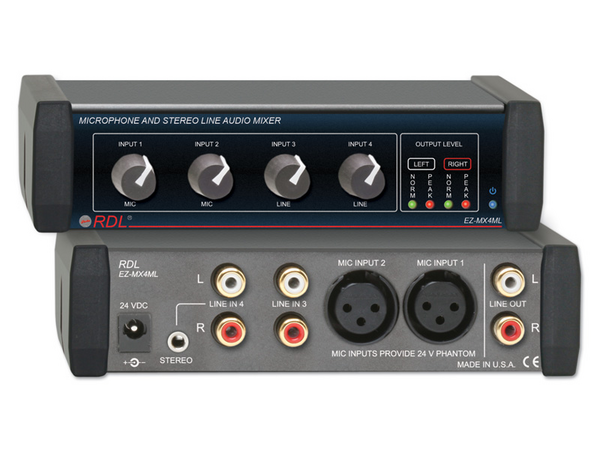

Click image to enlarge

EZ-MX4ML
MIC AND STEREO LINE AUDIO MIXER - 4X1

  • UM : EA
  • Estimated Weight: 1.0

The EZ-MX4ML is a stereo audio mixer with two mic and two line inputs. Microphones connect through balanced XLR jacks that provide phantom voltage. Both line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The EZ-MX4ML is used in houses of worship, restaurants, clubs, meeting rooms, studios, broadcast and commercial sound systems.

Features:

  • Four Input Mixer, Two Mic and Two Line Inputs
  • Two Balanced Microphone Inputs on XLR
  • One Unbalanced Line Input on RCA Jacks
  • One Line Input on MINI or RCA Jacks
  • Unbalanced Output on RCA Jacks
  • Microphone Inputs Provide Phantom Voltage
  • Dual-LED VU Meter for Each Channel
  • Optimized for Dynamic or Condenser Mics
  • Headroom Accomodates High Input Levels
  • Mic Headroom Increases at Lower Gain Settings
  • Gold Plated RCA Input and Output Jacks
Mic inputs (2) 1.2 kΩ balanced on XLR jack, mic-level, -11 dBu max.
Line inputs (3) > 10 kΩ, -10 dBV nominal on RCA jacks, -10 dBV nominal on RCA jacks or Mini Jack, +20 dBV max.
Level controls (4) Off to 50 dB gain (mic), Off to 12 dB gain (line)
Output -10 dBV nominal on RCA jacks or Mini jack (stereo), +16 dBV max.
Frequency Response 80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter), 10 Hz to 20 kHz (±0.01 dB, line input)
THD+N < 0.1% (20 Hz to 20 kHz, -50 dBu mic input), < 0.05% (20 Hz to 20 kHz, line input)
Crosstalk < -72 dB (1 kHz)
CMRR > -55 dB (20 to 20 kHz, mic input)
Metering Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Phantom 24 V (IEC 61938: 2013)
Noise < -65 dB (below -10 dBV output, -50 dBu mic input), < -75 dB (below -10 dBV output, line input)
24 Vdc power supply current 50 mA (idle), 80 mA (max.), 100 mA (max. with phantom)
Case dimensions 5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size 1/3 rack width
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.615 lbs.
Shipping Weight 1.015 lbs.
Package Dimensions 9.5 x 7 x 2.25 in.
