EZ-PA20X | 20 WATT STEREO AUDIO POWER AMPLIFIER
EZ-PA20X
20 WATT STEREO AUDIO POWER AMPLIFIER
Click image to enlarge
EZ-PA20X
20 WATT STEREO AUDIO POWER AMPLIFIER
- UM : EA

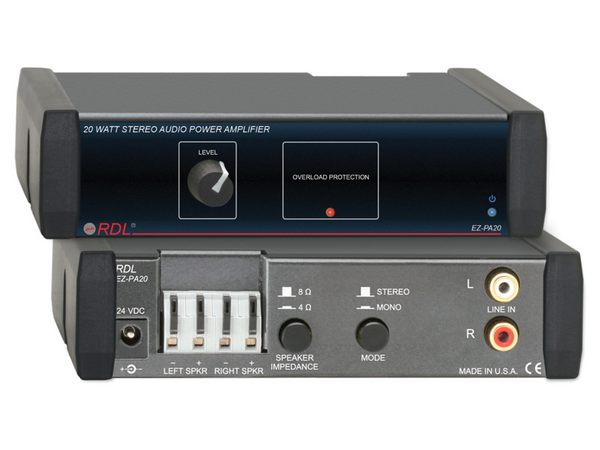

The EZ-PA20 is a stereo audio amplifier with one line input and a front-panel volume control. An integral compressor/limiter allows a higher sound output level without clipping than is possible using a standard amplifier. The output drives 4 or 8 ohm speakers. The EZ-PA20 is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems.
Features:
- Audio Amplifier with Front-Panel Level Control
- 10 Watts RMS Per Channel into 8 Ω
- 8 Watts RMS Per Channel into 4 Ω
- Switch-Selectable Load Impedance on Rear Panel
- Unbalanced Line Input on RCA Jacks
- Switch-Selectable Mono or Stereo Mode
- Integral Overload Limiter with LED Indicator
- Limiter Controls Overloads from Clipping
- Limiter Produces Output Level Comparable to Higher Power Amps
- Mono Mode Switch Sums Left and Right Inputs
| Input | > 10 kΩ, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max. |
|---|---|
| Gain | Off to 32 dB |
| Outputs (2) | Left and Right, 10 Watts RMS into 8 Ω per channel or 8 Watts RMS into 4 Ω per channel, switchΩselectable output impedance |
| Frequency Response | 35 Hz to 20 kHz (±1.5 dB, 10 Watts) |
| THD+N | < 0.25% |
| Crosstalk | < -68 dB (1 kHz) |
| Noise | < -70 dB (below 10 Watts) |
| 24 Vdc power supply current | 160 mA (idle), 1000 mA (max.) |
| Case dimensions | 5.75” (14.6 cm)W x 5” (12.7 cm)D |
| Mounting size | 1/3 rack width |
| Package Type | Cardboard Box |
| Tariff code | 8518.50.0000 |
| WEEE weight | 0.945 lbs. |
| Shipping Weight | 1.365 lbs. |
| Package Dimensions | 9.5 x 7 x 2.25 in. |
×
