EZ-PD3 | 24 VDC POWER DISTRIBUTOR - 1X3

  • MAP: $135.66 / EA
  • List Price: $180.87 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
24 VDC POWER DISTRIBUTOR - 1X3

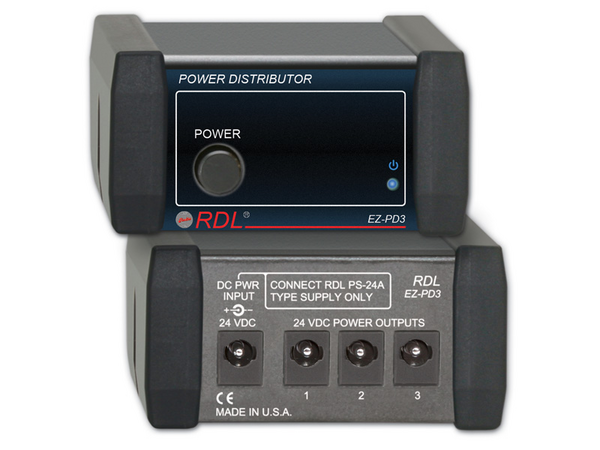

Click image to enlarge

EZ-PD3
24 VDC POWER DISTRIBUTOR - 1X3

  • UM : EA

The EZ-PD3 is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to three EZ modules from a single power supply. Upon application of power, the EZ-PD3 ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. A front-panel power switch is provided. The front-panel blue LED remains illuminated when the outputs are active.

Features:

  • Distribution of 24 Vdc Power
  • Soft-Start from Switching Supply
  • Outputs may be Activated by a Front-Panel Switch
  • Up to 3 Power Distribution Points
  • Voltage Presence Indication
  • Reverse Voltage Protection
  • Energy Efficiency by Powering Multiple Products from a Single Power Supply
Input/Output Voltage 24 Vdc @ 600 mA (Intended for use with current limited switching supply)
Outputs (3) Total load current must not exceed 600 mA
Indicator POWER LED
Ambient Operating Environment 0° C to 55° C
Power Requirement 24 Vdc @ 20 mA plus connected loads
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.41 lbs.
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight 0.675 lbs.
