EZ-SX4X | STEREO AUDIO INPUT SWITCHER - 4X1

  • MAP: $217.39 / EA
  • List Price: $289.86 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
STEREO AUDIO INPUT SWITCHER - 4X1

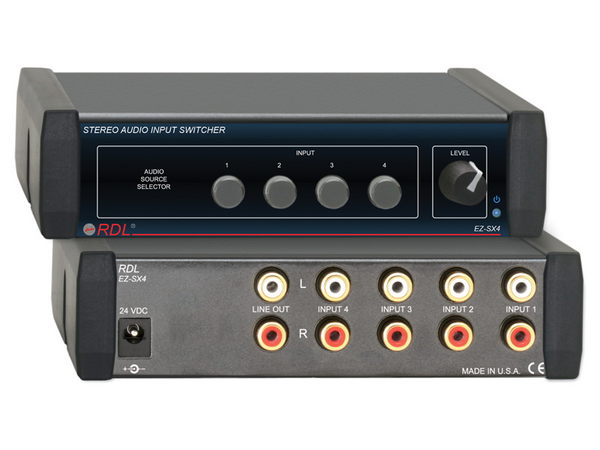

Click image to enlarge

EZ-SX4X
STEREO AUDIO INPUT SWITCHER - 4X1

  • UM : EA

The EZ-SX4 is a stereo audio source selector with an output volume control that adjusts the line-level output. This unit is ideal as a four input source selector feeding an associated audio amplifier. The user can conveniently select an audio source and adjust the level on the front panel. The EZ-SX4 is used in stores, houses of worship, restaurants, clubs, home component systems and commercial sound systems.

Features:

  • Four Input Source Selection
  • Unbalanced Stereo Audio Inputs and Output
  • Inputs and Line Output on Rear-Panel RCA Jacks
  • Line Output Level Controlled by Front-Panel Knob
  • Full-Size Interlocking Pushbuttons on Front Panel
  • Easy-to-Push Large Buttons
  • Solid-State Audio Switching
  • Switch Noise Cannot Affect Signal Quality
  • Select Source and Set Volume at One Location
  • Connect Directly to a Power Amp as the User Interface
  • Gold Plated RCA Input and Output Jacks
Inputs (4) Stereo on dual RCA jacks, > 10 kΩ, -10 dBV nominal, +10 dBV max.
LEVEL control Off to +12 dB gain
Output Stereo on dual RCA jacks, line level, -10 dBV nominal, +17 dBV max.
Frequency Response 10 Hz to 20 kHz (±0.01 dB)
THD+N < 0.02%
Crosstalk < -70 dB (1 kHz)
Noise < -80 dB (below -10 dBV)
24 Vdc power supply current 30 mA (idle), 60 mA (max.)
Case dimensions 5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting size 1/3 rack width
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.795 lbs.
Shipping Weight 1.2 lbs.
Package Dimensions 9.5 x 7 x 2.25 in.
