FA62T-8MB | 6" COAXIAL LOUDSPEAKER WITH 70.7V/100V-32W TRANSFORMER AND 8OHM BYPASS

  • MAP: $75.99 / EA
  • List Price: $92.99 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
6" COAXIAL LOUDSPEAKER WITH 70.7V/100V-32W TRANSFORMER AND 8OHM BYPASS

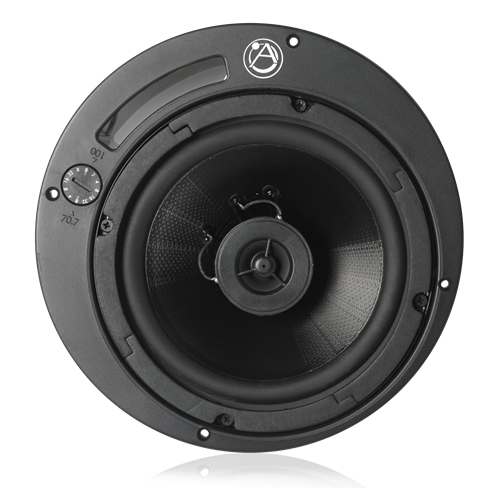

Click image to enlarge

FA62T-8MB
6" COAXIAL LOUDSPEAKER WITH 70.7V/100V-32W TRANSFORMER AND 8OHM BYPASS

  • UM : EA
  • Estimated Weight: 37.6

Model FA62T-8MB is the entire 6" speaker/ transformer/ selector switch/ front plate assembly found in the FAP62T assembly. The footprint of the FA62T-8MB is identical to a standard FA series 8" speaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosures in the exact same manner as a regular 8" FA speaker (FA138Txx).

Features:

  • 6" Speaker Installs into 8" Strategy Enclosure (FA97-8)
  • Designed for Division of Labor Installations When Enclosures Need to be Installed Before Speakers
  • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
  • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8ohm Direct Coupled Operation
  • Tuned Port Maximizes Low Frequency Response from FA97-8 & FA95-8 Enclosure
  • UL1480 for General Signaling Listed file UEAY.S1824
Speaker Type Coaxial
Sensitivity 88dB Average
Frequency Response 63Hz - 20kHz
Power Taps 2, 4, 8, 16, 32, 8 Ohm direct
Dispersion 110°
Depth 5 1/2" (13.97 cm)
Diameter 8 1/2" (21.59 cm)
Shipping Weight 6.00 lbs (2.72 kgs)
Safety Listed 1480
Warranty Period 60 months from date of purchase
