FOC615 | FOCUS WASH 400; 400W, RGBACL (RED, GREEN, BLUE, AMBER, CYAN AND LIME) LED MOVING HEAD WASH

FOC615

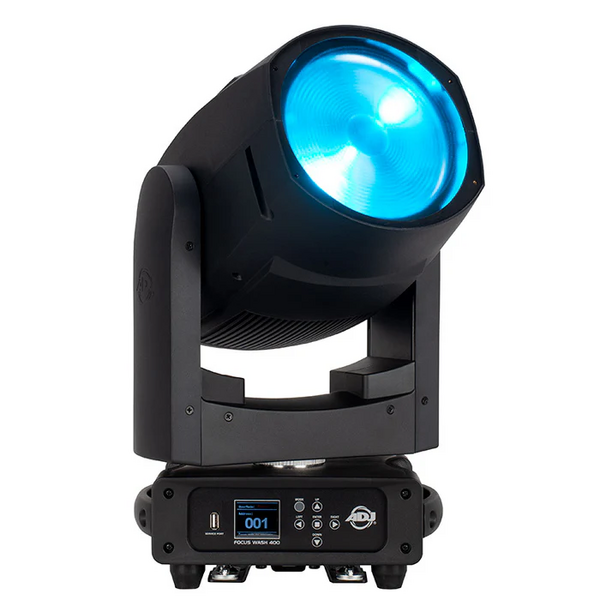

FOCUS WASH 400; 400W, RGBACL (RED, GREEN, BLUE, AMBER, CYAN AND LIME) LED MOVING HEAD WASH

The ADJ Focus Wash 400 is a powerful and versatile moving head wash fixture designed for professional lighting applications in stages, venues, and productions. Featuring a 400W RGBAL (Red, Green, Blue, Amber, Lime) LED engine, it delivers rich, vibrant color mixing and a high CRI for accurate color rendering. Its motorized zoom ranges from 10° to 41°, allowing for tight beams or wide washes depending on the application. The Focus Wash 400 includes an electronic dimming system, variable speed strobe effects, and smooth 16-bit fine pan/tilt control for precise positioning. With DMX, RDM, and Art-Net/sACN control options, plus onboard manual and preset operation modes, it provides exceptional flexibility for lighting designers and technicians. Ideal for theaters, houses of worship, live events, and touring productions, the Focus Wash 400 combines reliability, performance, and creative control in a rugged, road-ready fixture.

Use options: Theatrical and live performance rigs with mixed Focus Series fixtures - Art-Net/sACN lighting networks for multi-fixture control - ADJ myDMX 3.0 or Airstream DMX Bridge systems

SOURCE:

• 400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)

• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 7139 Total Stable Lumen Output (Full ON, Zoomed Out to Full)

• 11072 LUX, 1029 FC @ 9.8’ (3m) (Zoomed In / Full ON)

• 1858 LUX, 173 FC @ 9.8’ (3m) (Zoom Out / Full ON)

• Beam Angle: 9° to 43°

• Field Angle: 17° to 55°

• Color Temperature: Tunable, 2400K to 8500K

CRI: 95.2

COLOR:

• Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control

• Virtual Color Wheel Control

• Virtual CMY Control

EFFECTS:

• RGBACL Color Mixing

• Virtual CMY Color Mixing

• 9° - 43° degree Motorized Zoom

• Electronic Strobe and Dimmer

• Color Temperature Red to Green control via DMX

• Linear Color Temperature control, 2700K to 10,000K

• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)

CONTROL / CONNECTIONS:

• 5 DMX Channel Modes: [Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24)]

• Selectable LED Refresh Rates, 900Hz to 25kHz.

• Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds

• 6-button Control Panel and LCD Menu Display

• USB Firmware Update Port

• RDM (Remote Device Management)

• Quiet Fan Mode

• Locking 3-pin and 5-pin XLR Connector In/Out

• IP65 Locking Power Connector In/Out

• With Wired Digital Communication Network

SIZE / WEIGHT:

• Length: 10.96" (278.43mm)

• Width: 8.4" (213.33mm)

• Vertical Height: (Without Snoot)19.6" (498.1mm)

• Vertical Height (With Snoot) 22.37" (568.1mm)

• Weight: 23.5 lbs. (10.7 kg)

ELECTRICAL / THERMAL:

• Multi-voltage: AC 100-240V / 47/63Hz

• 460W Power Consumption @ 120V

• 430W Power Consumption @ 240V

• Multiple Unit Power Linking

• 5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS:

• CE Compliant

• cETLus (Control #4010765)

• IP20

• dB Rating: 46dB @ 3'

INCLUDED ACCESSORIES:

• Snoot

• 1x40 Degree Linear Lens

• 2 Omega Brackets

• Safety Cable

• IP65 Locking Power Cable
