FP-MP1
STUDIO QUALITY MIC PREAMP W/ PHANTOM - TERMINALS & XLR
FP-MP1
STUDIO QUALITY MIC PREAMP W/ PHANTOM - TERMINALS & XLR
- UM : EA

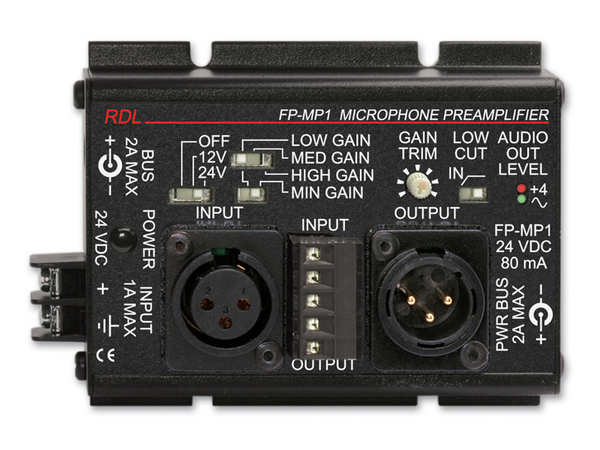

The FP-MP1 is the ideal choice in most applications requiring a preamp. RDL''s exclusive low-noise discrete circuitry produces studio quality low noise performance in an economical preamplifier. The XLR and plug-in terminal block connections make the FP-MP1 perfect for both rack-mounted hardwired installations and remote use with standard audio cables. A front-panel switch permits the installer to direct phantom voltage to the input connectors. This 3-position switch provides 24V, 12V or phantom OFF. A second switch selects the input gain range thereby permitting the connection of standard or high output level microphones.
Features:
- Professional Studio-Quality Low-Noise Performance
- Switchable Internal Phantom Voltage
- XLR and Terminal Block Connections
- Selectable Input Level Ranges
- Adjustable Gain with Dual-LED VU Metering
- Ultra-Compact All Metal Construction
- Convenience of RDL FLAT-PAKs
| Input Impedance | 3 kΩ (balanced) |
|---|---|
| GAIN (4 ranges) | MIN: 19 dB to 38 dB (switch-selectable)LOW: 26 dB to 45 dB (switch-selectable)MED: 36 dB to 55 dB (switch-selectable)HIGH: 46 dB to 65 dB (switch-selectable) |
| Dimensions | Height: 1.42 in 3.61 cm Width: 3.25 in. 8.26 cm Length: 4.64 in. 11.79 cm |
| Input Clipping Level | +4 dBu (at MIN gain) |
| Headroom | 20 dB (above +4 dBu |
| Low-Cut Filter | 80 Hz, 6 dB/Octave (switch-selectable) |
| Phantom Voltages | 12 V, 24 V (switch-selectable) |
| Buildout Standard | IEC 61938: 2013 |
| CMRR | > 60 dB |
| Frequency Response | 20 Hz to 20 kHz (± 0.2 dB) |
| THD + N | < 0.1% (+4 dBu, all gain settings) |
| IMD | < 0.1% |
| Noise (below +4 dBu) | < -70 dB(60 dB gain, 20 Hz to 20 kHz)< -72 dB (60 dB gain, “A-Weighted”)< -80 dB (50 dB gain, 20 Hz to 20 kHz) |
| Equivalent Input Noise | < -130 dB (gain + residual noise below +4 dBu) |
| Connector type | XLR female (input) XLR male (output) 5 position plug-in terminal block(input and output) |
| Audio Level Indicators (2) | Red LED: Output level > +4 dBuGreen: -10 to +4 dBu (variable intensity) |
| Ambient Operating Environment | 0° C to 50° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 100 mA |
| Package Type | Cardboard Box |
| WEEE weight | 0.645 lbs. |
| Shipping Weight | 0.815 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
