FP-PA20A | POWER AMPLIFIER - 20 W 70 & 100 V OUTPUTS
FP-PA20A
POWER AMPLIFIER - 20 W 70 & 100 V OUTPUTS
FP-PA20A
POWER AMPLIFIER - 20 W 70 & 100 V OUTPUTS
- UM : EA

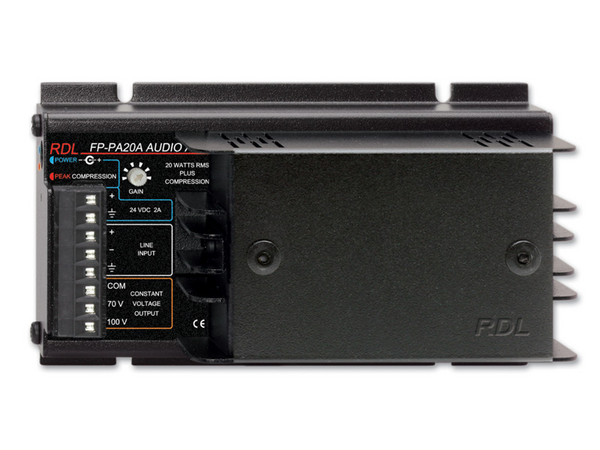

The FP-PA20A features a balanced line level input that may be connected unbalanced. A front panel gain control is designed to be adjusted either manually or with a trimming screwdriver. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. Both a 70 V and 100 V amplified output are provided to drive corresponding speakers in a distributed sound system. Audio levels that could cause the amplified output to clip are compressed using two dynamic time constants designed to preserve aural transparency. Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics and preventing the compressor from increasing feedback potential when the amplifier is used for paging. The FP-PA20A produces average audio levels and audio clarity normally expected of amplifiers delivering much higher output power.
Features:
- 20 Watts RMS Constant Voltage Amplifier
- 70 V and 100 V Outputs
- Integral Audio Compressor to Control Clipping
- High Overall Operating Audio Level
- Maximized Audio Level for Output Power
- Audio Quality Superior to Standard Amplifiers
- Plenum Rated per UL 2043 Standard
| Indicators (2) | Red LED: PEAK LED indicates compressor activityGreen LED: Power ON |
|---|---|
| Ambient Operating Environment | 0° C to 30° C Max 20° C Recommended |
| CMRR | > 55 dB (50 Hz to 120 Hz) |
| Output Power | 20 W RMS @ 70 V or 100 V |
| Compressor | Threshold 6 dB below rated output,automatic adjusting attack and release |
| Noise | < -80 dB (below 20 W RMS) |
| Overall Dimensions | Height: 2.3 in. (5.85 cm) Width: 3.25 in. (8.26 cm) Length: 6 in. (15.3 cm) |
| Gain Adjustment | Single turn audio taper |
| Plenum Rating Standard | UL 2043 |
| THD+N | < 0.1% (@ 1 kHz)*< 0.5% (50 Hz to 20 kHz)**measured at compressor threshold level equaling 4 W RMS output power |
| Frequency Response | 50 Hz to 20 kHz (± 3 dB)* |
| Maximum Input Levels | Balanced: +23 dBuUnbalanced: +15 dBV |
| Minimum Input Levels | Balanced: -26 dBu (to cross compressor threshold)Unbalanced: -28 dBV (to cross compressor threshold) |
| Input / Output Connector | Detachable terminal block |
| Input Impedance | 20 kΩ balanced bridging 10 kΩ unbalanced |
| Input | Line level (+4 dBu bal -10 dBV unbal) |
| Power Requirement | 24 Vdc @ 1650 mA, Ground referenced(for continuous RMS power output)24 Vdc @ 1000 mA, Ground referenced (for normal uncompressed audio) |
| Package Type | Cardboard Box |
| WEEE weight | 2.18 lbs. |
| Shipping Weight | 2.395 lbs. |
| Tariff code | 8543.70.9910 |
| Package Dimensions | 4.375 x 7 x 2.25 in. |
