FP-SPR1 | SPDIF REPEATER / AMPLIFIER
FP-SPR1
SPDIF REPEATER / AMPLIFIER
FP-SPR1
SPDIF REPEATER / AMPLIFIER
- UM : EA
The FP-SPR1 is the ideal product for applications requiring either conversion between S/PDIF connector types or recovery of low S/PDIF signal levels. Power connections are made using either the full-size barrier block terminals or a dc power jack located in one end panel. A second dc power jack is provided on the other end panel for connecting additional FLAT-PAK modules.

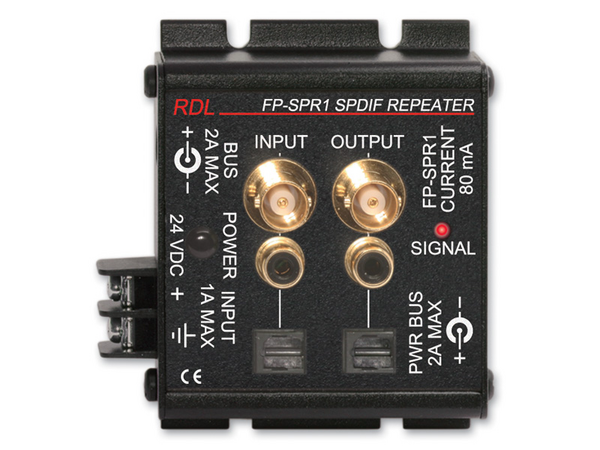

The FP-SPR1 is a single-channel module featuring three separate inputs. An input is provided in each conventional S/PDIF format: BNC, phono and optical. Any one of these inputs may be used. A coaxial input has priority over the optical input. Three output jacks are also provided: BNC, phono and optical. Either of the coaxial jacks may be used and/or the optical output may be connected. It is possible to use only one of the three outputs or use one coaxial and the optical output simultaneously. A front-panel SIGNAL LED illuminates when an input signal of sufficient amplitude is received to produce the correct output from the module.
Features:
- Correct S/PDIF Signal Level from Long Line
- Conversion Between S/PDIF Connector Types
- BNC, Phono and Optical Inputs
- BNC, Phono and Optical Outputs
- Reshape S/PDIF Waveforms
- Virtually Jitter-Free Performance
- Convenience of RDL FLAT-PAKs
| Inputs (3) | 75 Ω BNC coaxial, 75 Ω phono coaxial, optical |
|---|---|
| Input Level | 100 mV to 2.5 V p-p (coaxial) |
| Outputs (3) | 75 Ω BNC coaxial, 75 Ω phono coaxial, optical |
| Output Level | 500 mV p-p (coaxial) |
| Frequency Range | 28 kHz to 48 kHz |
| Indicator (1) | Signal present LED |
| Jitter | < 200 pS (input signal 200 mV p-p or greater),< 1 nS (input signal 100 mV p-p) |
| Ambient Operating Environment | -10° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 80 mA Note: May operate from 12 Vdc in standalone installations |
| Dimensions | Height: 1.34 in. 3.40 cm Width: 3.25 in. 8.26 cm Length: 2.82 in. 7.16 cm |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.375 lbs. |
| Shipping Weight | 0.55 lbs. |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
