FP-TPS4A | FORMAT-A TWO-PAIR AUDIO SENDER (COMPATIBLE WITH GUEST ROOM AUDIO SYSTEM)

The FP-TPS4A is an RDL Format-A Audio Sender that accepts either a stereo line-level or 1 to 3 Watt mono amplified fixed-level signal, usually from a commercial hospitality equipped TV. The FP TPS4A distributes the source signal to two Format-A output jacks to feed multiple Format-A receivers.

The input accepts either an unbalanced stereo or an amplified mono input. The FP-TPS4A sends the unbalanced Left and Right sources over balanced twisted-pair cables on pairs B and C. If a mono amplified signal is connected, the mono source is fed to both pairs B and C. Audio circuitry is active balanced for superior audio fidelity and low-noise performance.

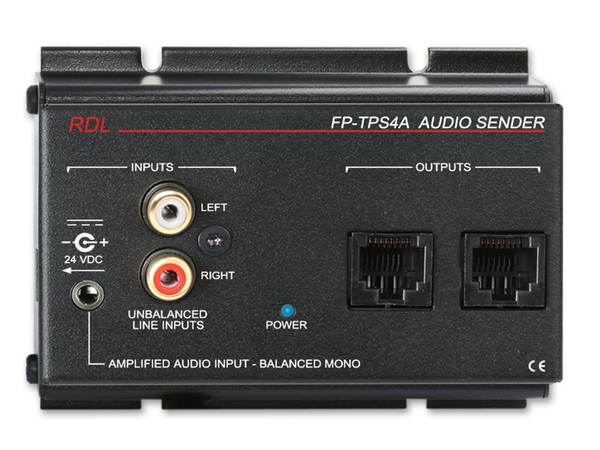

The FP-TPS4A is normally mounted behind a TV where AC power is available. A 24 Vdc power supply, available separately, provides power to the FP-TPS4A and to the connected receiving modules. It is not necessary to connect power supplies to the connected receivers, facilitating installation. A front-panel blue LED is illuminated when the FP-TPS4A is receiving and distributing 24 Vdc to both RJ45 jacks. The distributed output dc voltage is short-circuit protected by an automatically resetting fuse. A power fault on either output jack causes the blue LED to extinguish.

The FP-TPS4A is ideally suited to guest room installations with bedside and restroom listening stations. The outputs are fully compatible with all RDL Format-A receivers.

Features:

• Format-A Sender from TV Fixed Audio Output
• Sends Left and Right Audio Channels
• Unbalanced Stereo Input from Fixed Level Audio Source
• Balanced Audio Input from Mono Amplifier
• High Quality Audio Distributed to Each RJ45 Output
• Two Format-A Outputs on RJ45
• Distributes Power to Connected Receivers
• Automatically Resetting Fuse for Output Voltage
• Ultra-Compact All Metal Construction
