FP-UBC6 | UNBALANCED TO BALANCED CONVERTER - 6 CHANNEL
FP-UBC6
UNBALANCED TO BALANCED CONVERTER - 6 CHANNEL
FP-UBC6
UNBALANCED TO BALANCED CONVERTER - 6 CHANNEL
- UM : EA

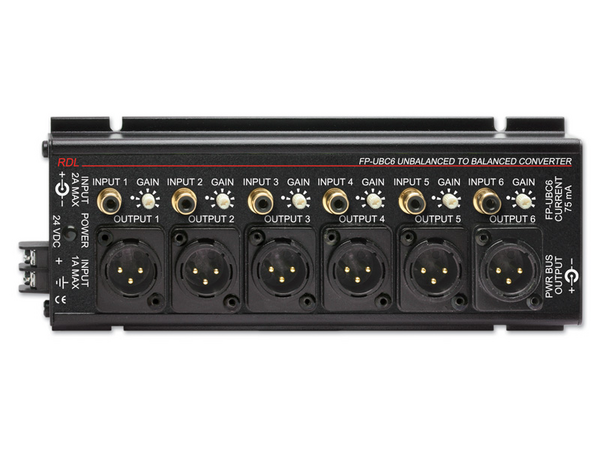

The FP-UBC6 is the ideal choice for multiple channel connectorized conversion from unbalanced to balanced audio. This module features six identical channels, making it ideally suited to converting consumer 6-channel surround sound into the professional audio format. Each input channel is unbalanced, connected through a gold-plated phono jack. Each output is balanced. All outputs are connected through XLR jacks with gold-plated pins. A gain trim potentiometer is provided for each channel.
The normal gain setting is indicated for the trimming potentiometer. This setting produces a +4 dBu balanced output for a −10 dBV unbalanced input. The gain is adjustable −5 dB to +10 dB from the normal gain. Therefore, a +4 dBu output signal is possible from input signals ranging from −20 dBV to −5 dBV.
Features:
- Unbalanced to Balanced Audio Conversion
- 6 Channel Conversion with Gain Trim
- Connectorized Audio Converter
- Low-Noise and Low-Distortion Conversion
- Cabinet, Shelf or Rack Mounting
- Convenience of RDL FLAT-PAKs
| Amps per FP-UBC6 | 6 identical circuits |
|---|---|
| Gain | -5 dB to +10 dB adjustable (relative to +4 dBu output for −10 dBV input separate controls for each channel) |
| Input Level | -20 dBV to −5 dBV (for +4 dBu output) |
| Input Impedance | 10 kΩ |
| Input Configuration | Unbalanced |
| Output Impedance | 150 Ω balanced, drives 600 Ωor 10 kΩ lines |
| Output Configuration | Balanced or unbalanced |
| Frequency Response | 20 Hz to 40 kHz (± 0.25 dB) |
| Total Harmonic Distortion | < 0.05% typ. 0.01% (1 kHz) |
| IMD | < 0.02% |
| Output Level | +4 dBu |
| Headroom | > 18 dB (at rated output level of +4 dBu) |
| Noise | < -90 dB referred to +4 dBu (20 Hz to 20 kHz) |
| Crosstalk | Better than 80 dB (20 Hz to 20 kHz) |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 75 mA |
| Dimensions | Height: 1.29 in.3.28 cm Width: 3.25 in.8.26 cm Length: 8.55 in.21.72 cm |
| Package Type | Cardboard Box |
| WEEE weight | 1.255 lbs. |
| Shipping Weight | 1.54 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 3.375 x 8.5625 x 1.5 in. |
