FSE-BP50-X4 | FREESPEAK EDGE BELTPACK: 5GHZ WITH (9) ASSIGNABLE KEYS, 4 PIN XLR-MALE HEADSET
FSE-BP50-X4
FREESPEAK EDGE BELTPACK: 5GHZ WITH (9) ASSIGNABLE KEYS, 4 PIN XLR-MALE HEADSET
Click image to enlarge
FSE-BP50-X4
FREESPEAK EDGE BELTPACK: 5GHZ WITH (9) ASSIGNABLE KEYS, 4 PIN XLR-MALE HEADSET
- UM : EA
- Estimated Weight: 2.5

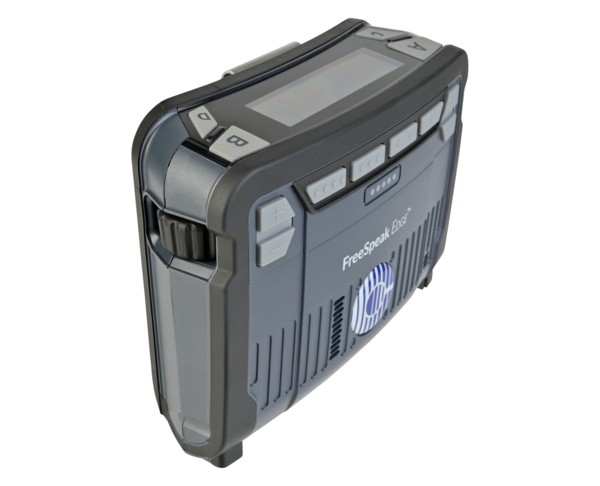

The FSE-BP50-X4 is a multi-channel beltpack designed for use in the ISM license-free 5 GHz frequency range. It features a water-resistant construction and an ergonomic form factor.
The device includes nine programmable keys, a large color display, two dedicated encoders labeled A and B, individual level controls for channels C and D, and a master volume control. The FreeSpeak Edge Digital Wireless RF Configuration Guide provides detailed and usage guidelines for the 5 GHz band and RF channels.
Features:

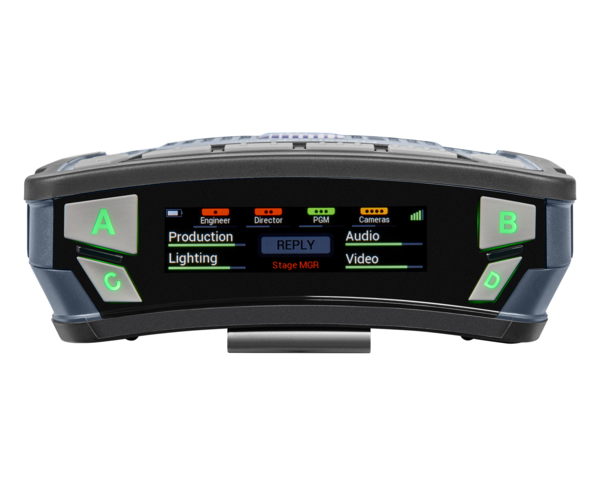

- TFT color display
- 4 top buttons with individual level control
- 5 additional programmable buttons
- Rotary controls on both sides
- Up/down level controls
- Master volume control
- Mic and speaker mode
- Drop-in and usb-c charging
- 5 ghz tuner frequency
- 20-27 tuner channels (region specific)
- Dual redundant tuners
- 2.4 ghz tuner
- Low latency audio (<35ms)
- Aes256 shared key encryption
- Ip54 rating for wet and dusty conditions
| Audio bandwidth | 200 – 12khz |
|---|---|
| No. of full-duplex audio paths | 9 |
| Mode of operation | Full duplex on all routes |
| Level/talk controls | 9 push buttons, 5 level controls (2 rotary, 2 button, 1 master) |
| Menu button | 1 |

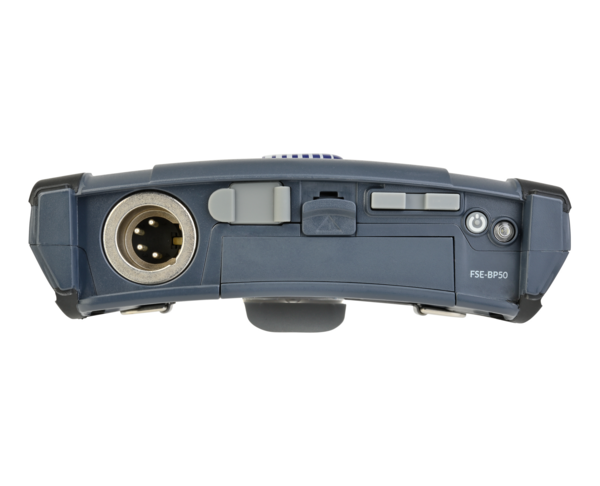

| Headset connector | 4-pin male, clear-com standard, options for 5-pin female and 7-pin male with ptt |
| Microphone type | Electret and dynamic, selectable in beltpack menu |
| Headset limiter | Selectable from beltpack menu |
| Frequency spectrum | 5170 - 5875mhz (20mhz channels set by country) |
| Output power | Adjustable from 1 – 24dbm (max power based on channel and country) |
×
×
×
×
×
