FSE-BP50-X7 | MULTI-CHANNEL BELTPACK
FSE-BP50-X7
MULTI-CHANNEL BELTPACK
Click image to enlarge
FSE-BP50-X7
MULTI-CHANNEL BELTPACK
- UM : EA
The FSE-BP50-X7 is a multi-channel beltpack designed for use in the ISM license-free 5 GHz frequency range. It features a water-resistant construction and an ergonomic form factor.

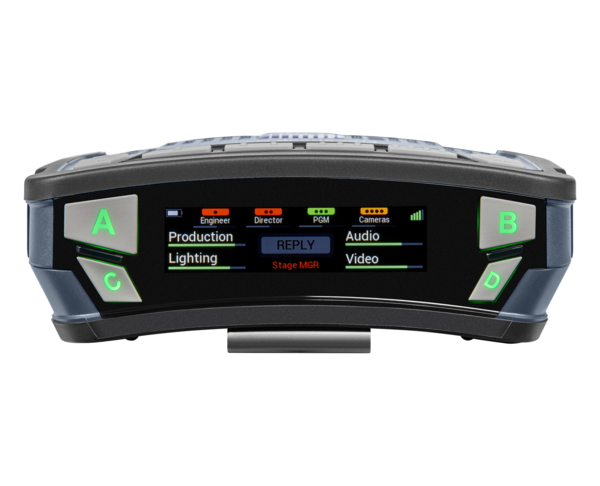

The device includes nine programmable keys, a large color display, two dedicated encoders labeled A and B, individual level controls for channels C and D, and a master volume control. The FreeSpeak Edge Digital Wireless RF Configuration Guide provides detailed and usage guidelines for the 5 GHz band and RF channels.
Features:
- TFT color display
- 4 top buttons with individual level control
- 5 additional programmable buttons
- Rotary controls and up/down level controls
- Master volume control
- Mic and speaker mode
- Built-in flashlight
- Drop-in and usb-c charging
- Works with freespeak edge base, arcadia central station, e-ipa-hx cards
- 5 ghz tuner frequency
- 20-27 tuner channels (region specific)
- Robust tuner link for multipath or reflective environments
- Dual redundant tuners
- 2.4 ghz tuner with beltpack pairing and firmware updates over the air
- Low latency audio < 35ms
| Audio bandwidth | 200 – 12khz |
|---|---|
| No. of full-duplex audio paths | 9 |
| Mode of operation | Full duplex on all routes |
| Level/talk controls | 9 push buttons, 5 level controls (2 rotary and 2 button level controls, with 1 master level control) |
| Menu button | 1 |

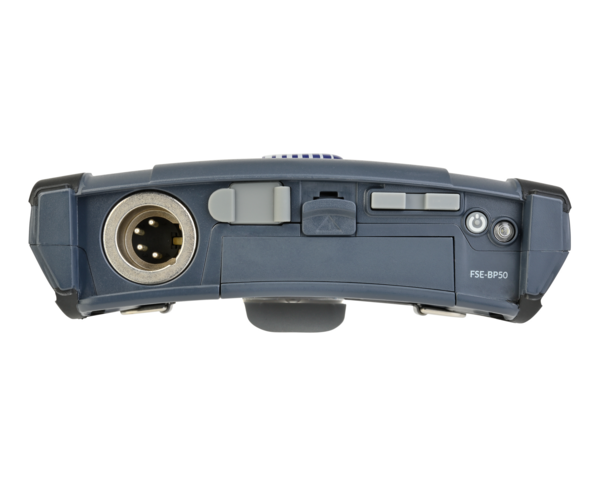

| Headset connector | 4-pin male, clear-com standard, options for 5-pin female and 7-pin male with ptt |
| Microphone type | Electret and dynamic, selectable in beltpack menu |
| Headset limiter | Selectable from beltpack menu |
| Frequency spectrum | 5170 - 5875mhz (20mhz channels set by country) |
| Output power | Adjustable from 1 – 24dbm (maximum output power is determined by selected channel and country) |
×
×
×
×
×
