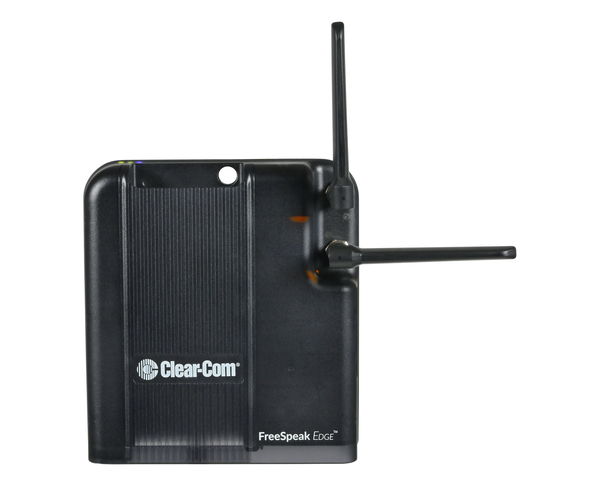

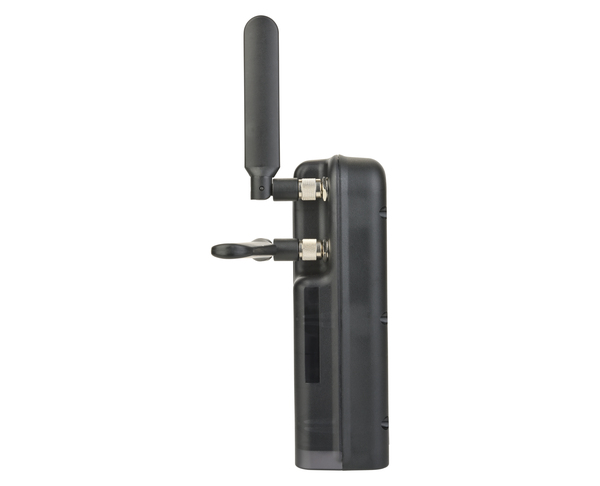

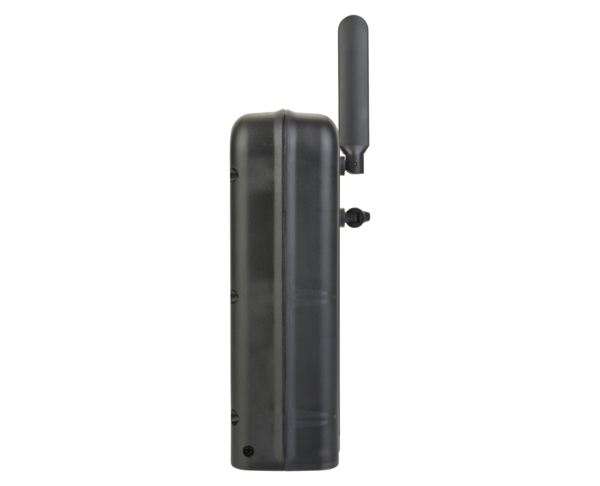

FSE-TCVR-50-IP-US | FREESPEAK EDGE TRANSCEIVER: 5GHZ, IP, US FOR (10) FSE-BP50 BELTPACKS

The FSE-TCVR-50-IP-US is an active IP transceiver antenna designed for the FreeSpeak Edge wireless system. It enables duplex communication between the Eclipse HX matrix system and FreeSpeak Edge beltpacks through the E-IPA-HX interface card. Each transceiver supports up to ten FSE-BP50 beltpacks.

When used with an E-IPA-HX card licensed for 64 ports, the system can deploy up to 64 FreeSpeak Edge beltpacks and 64 transceivers on a single Eclipse HX matrix system. The device operates within the 5 GHz frequency band.

Features:

• LED status indicators on transceiver
• External omnidirectional antennas
• Dual redundant radios per beltpack and transceiver
• Separate radios for RF and radar scanning

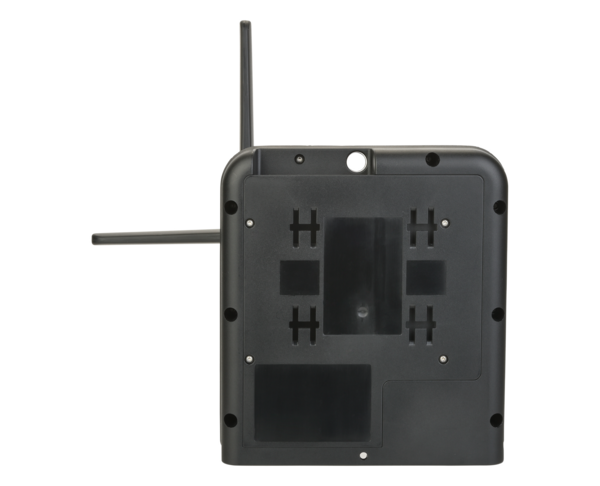

• Wall-mount plate included
• Microphone stand mounts (metric and imperial threads)
• Tripod spigot mount
• Supports up to 10 FreeSpeak Edge beltpacks per transceiver
• Supports up to 64 transceivers and beltpacks per 64 port E-IPA-HX card
• Robust radio link for multipath or reflective environments
• Wi-Fi coexistence
• AES256 shared key encryption

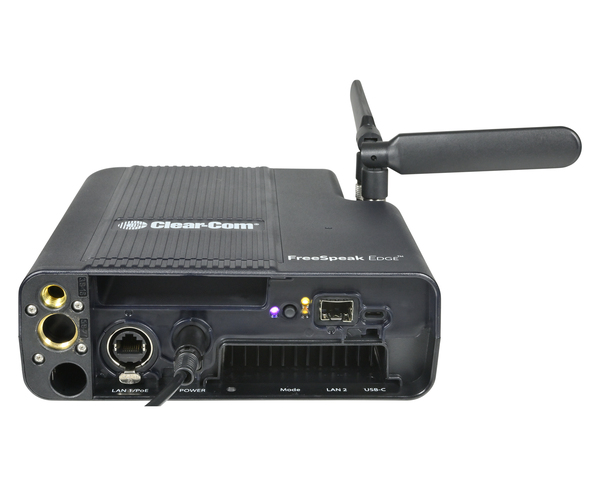

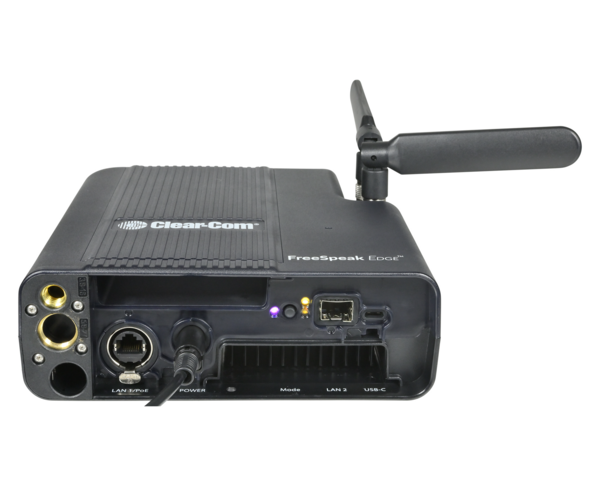

• Dual network connections with etherCON RJ45
• Power-over-Ethernet (PoE) up to 100m
• IP53 rating for wet and dusty conditions
