FSIC-BP19-X4 | FREESPEAK ICON BELTPACK: 1.9GHZ
FSIC-BP19-X4
FREESPEAK ICON BELTPACK: 1.9GHZ
Click image to enlarge
FSIC-BP19-X4
FREESPEAK ICON BELTPACK: 1.9GHZ
- UM : EA

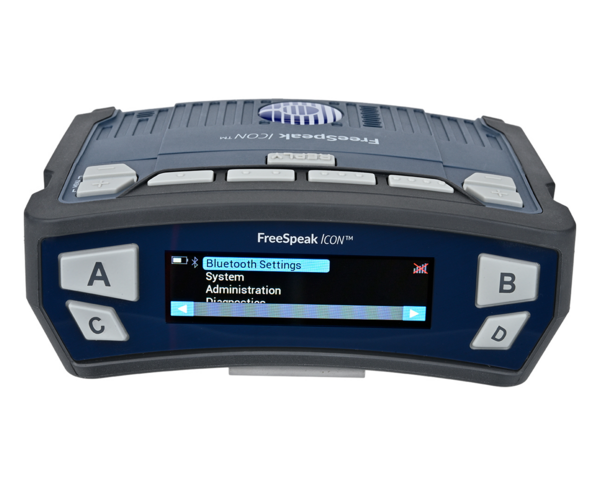

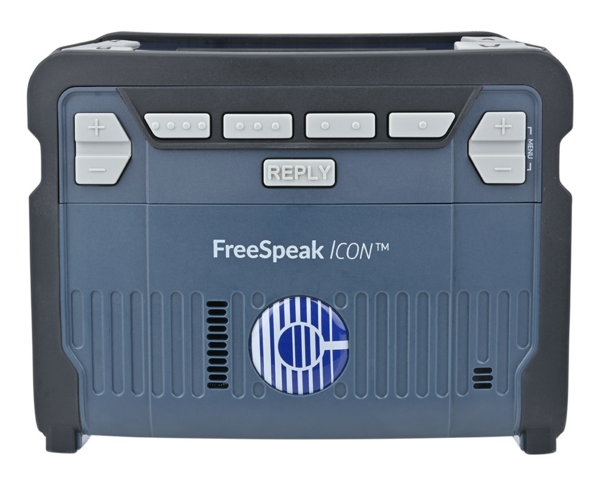

The FSIC-BP19-X4 is a multi-channel beltpack operating in the 1.9 GHz frequency band. It is designed for use with FreeSpeak Edge Base, Arcadia Central Station (version 3.1 or higher), and Eclipse HX frames (version 14.1 or higher) via E-IPA cards. The beltpack features nine programmable keys, a large color display, dedicated A and B encoders, individual level controls for channels C and D, a master volume control, and an integrated microphone and speaker for station mode.
The device is rugged and water-resistant, suitable for deployment on a wireless network alongside FreeSpeak II 1.9 GHz beltpacks.
Features:
- Functions with FreeSpeak Edge Base, Arcadia Central Station, Eclipse HX via E-IPA cards
- Supports up to 200 beltpacks on a single system
- TFT color display (120x480)
- 4 top buttons with individual level control
- 5 additional programmable buttons
- Rotary controls on both sides with up/down level controls
- Main volume control on bottom
- Bluetooth 5.3 support
- Built-in microphone and speaker
- Built-in flashlight
- Drop-in and USB-C charging
- 1.9 GHz radio frequency
- Compatible with FSII E1 and IP transceivers
- Low latency audio: <35ms
- IP54 rating for wet and dusty conditions
| Audio Bandwidth | 200Hz - 7.5KHz |
|---|---|
| No. of Full-Duplex Audio Paths | Up to 9 keys |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 8 pushbuttons - A/B/C/D (top buttons) and 1/2/3/4 (front buttons), 1 reply button, 2 rotary encoders, 2 level up/down controls, 1 reprogrammable main level control |
| Reply Button | 1 |
| Bluetooth | 5.3 Headset Profile |
| Bluetooth Codec | MSBC using HFP (Hands Free Profile) |
| Headset Connector | 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Battery Life | 18+ hours |
×
×
×
×
×
