FSIC-BP19-X7 | FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI

  • MAP: $3,295.00 / EA
  • List Price: $3,295.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI
Click image to enlarge
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI

FSIC-BP19-X7
FREESPEAK ICON BELTPACK: 1.9GHZ, (2) GPI

  • UM : EA

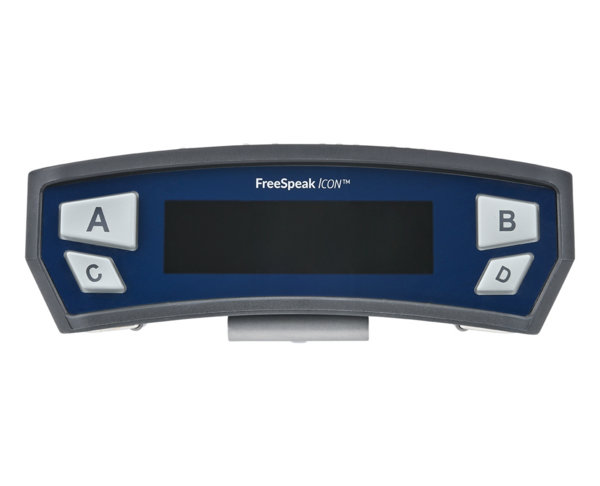

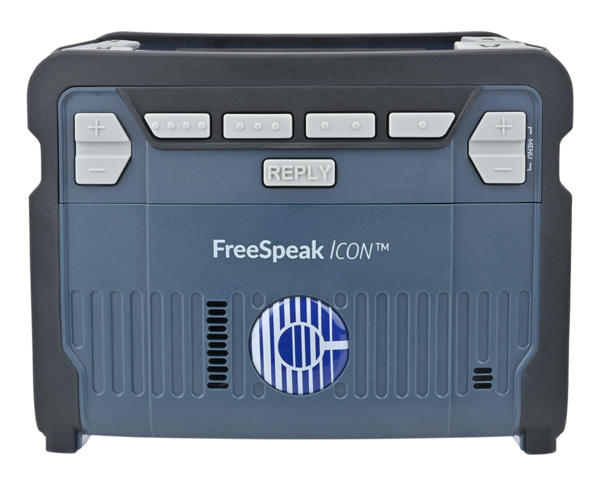

The FSIC-BP19-X7 is a multi-channel beltpack operating in the 1.9 GHz frequency band. It is designed for use with FreeSpeak Edge Base, Arcadia Central Station (version 3.1 or higher), and Eclipse HX frames (version 14.1 or higher) via E-IPA cards. The beltpack features nine programmable keys, a large color display, dedicated A and B encoders, individual level controls for channels C and D, a master volume control, and an integrated microphone and speaker for station mode.

The device is rugged and water-resistant, suitable for deployment on a wireless network alongside FreeSpeak II 1.9 GHz beltpacks.

Features:

  • Compatible with FreeSpeak Edge Base, Arcadia Central Station, and Eclipse HX via E-IPA cards
  • Supports up to 200 beltpacks on a single system

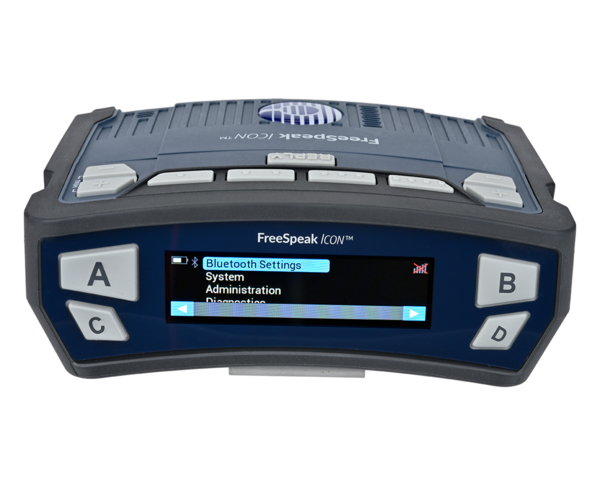

  • TFT color display (120x480)
  • 4 top buttons with individual level control
  • 5 programmable buttons
  • Rotary controls on both sides with up/down level controls
  • Main volume control on bottom
  • Bluetooth Low Energy (BLE) Radio, supports Bluetooth 5.3
  • Built-in microphone and speaker
  • Built-in flashlight
  • Drop-in and USB-C charging
  • 1.9 GHz radio frequency
  • Compatible with FSII E1 and IP transceivers
  • Low latency audio: <35ms (beltpack to beltpack)
  • IP54 rating for wet and dusty conditions
Audio Bandwidth 200Hz - 7.5KHz
No. of Full-Duplex Audio Paths Up to 9 keys
Mode of Operation Full duplex on all routes
Level/Talk Controls 8 pushbuttons - A/B/C/D (top), 1/2/3/4 (front), 1 reply button, 2 rotary encoders, 2 level up/down controls, 1 reprogrammable main level control
Reply Button 1
Bluetooth 5.3 Headset Profile
Bluetooth Codec MSBC using HFP (Hands Free Profile)

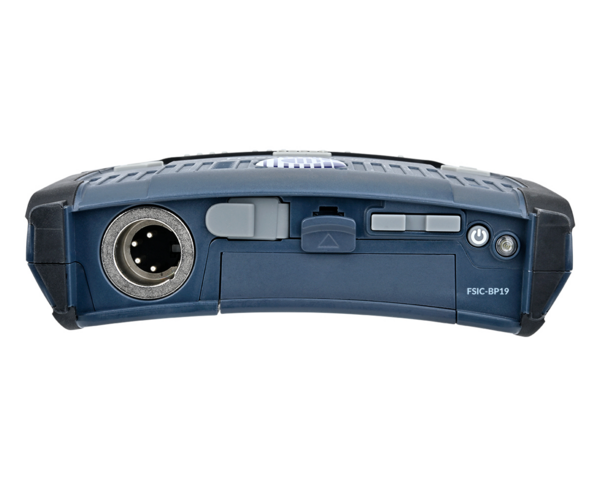

Headset Connector 4-pin male Clear-Com standard, options for 5-pin female and 7-pin male with PTT
Microphone Type Electret and Dynamic, selectable in beltpack menu
Battery Life 18+ hours
