FSII-BASE-II-X5 | FS II DIGITAL WIRELESS BASE STATION X5: FREESPEAK II DIGITAL LICENSE-FREE WIRELESS BASE STATION.
FSII-BASE-II-X5
FS II DIGITAL WIRELESS BASE STATION X5: FREESPEAK II DIGITAL LICENSE-FREE WIRELESS BASE STATION.
Click image to enlarge
FSII-BASE-II-X5
FS II DIGITAL WIRELESS BASE STATION X5: FREESPEAK II DIGITAL LICENSE-FREE WIRELESS BASE STATION.
- UM : EA

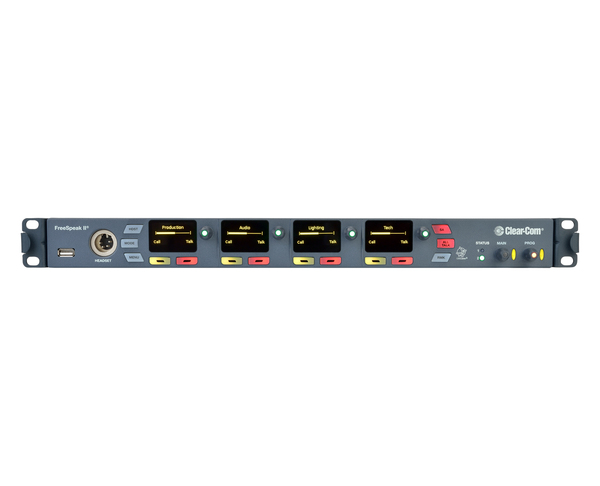

The FSII-BASE-II is a base station for the wireless FreeSpeak II 1.9 GHz and 2.4 GHz active transceiver antennas and beltpacks. The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections and four displays with soft keys. Dedicated stage announce (SA) output and program audio input are provided.
Features:
- Wireless Intercom Base Station
- Partyline 2-Wire Integration
- Line-Level 4-Wire Interfacing
- Headset User Station
- CCM browser configuration and monitoring
- Front panel configuration and monitoring
- Plug-and-go transceivers and beltpack pairing
- FreeSpeak Wireless Intercom (10 E1 Transceivers at 1.9 and 2.4 GHz)
- 25 beltpacks

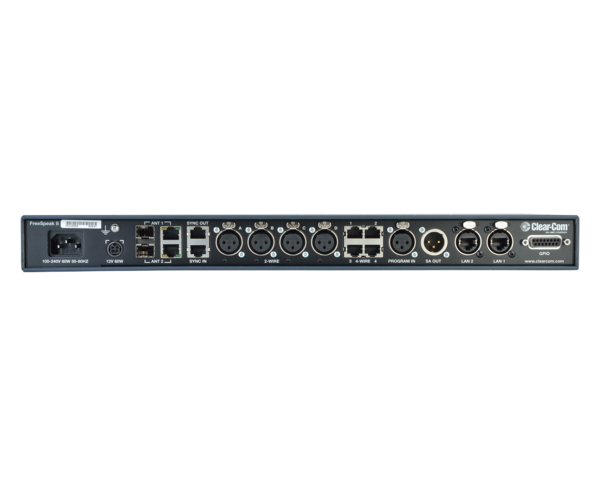

| Headset Connector | 5-pin XLR-F (X5) |
|---|---|
| 2-Wire I/O Connectors | (4) XLR-3F |
| 4-Wire I/O Connectors | (4) RJ45 |
| Program Audio Input | XLR-3F |
| Stage Announce Output | XLR-3M |
| GPIO Connectors | (1) DB15F (2 GPI, 4 GPO) |
| FreeSpeak II E1 TCVR/SPL Ports | (2) RJ45, (2) SFP (RJ45 or SFP selectable) |
| FSII DECT Synchronization | (2) RJ45 (Input and Output) |
| LAN | (2) RJ45 |
| AC Power Connector | IEC-C14 |
| DC Power Connector | KPJX-4S-S |
| Grounding Screw | Terminal |
×
×
