FSII-BP19-X5 | FREESPEAK II BELTPACK: 1.9GHZ
FSII-BP19-X5
FREESPEAK II BELTPACK: 1.9GHZ
Click image to enlarge
FSII-BP19-X5
FREESPEAK II BELTPACK: 1.9GHZ
- UM : EA

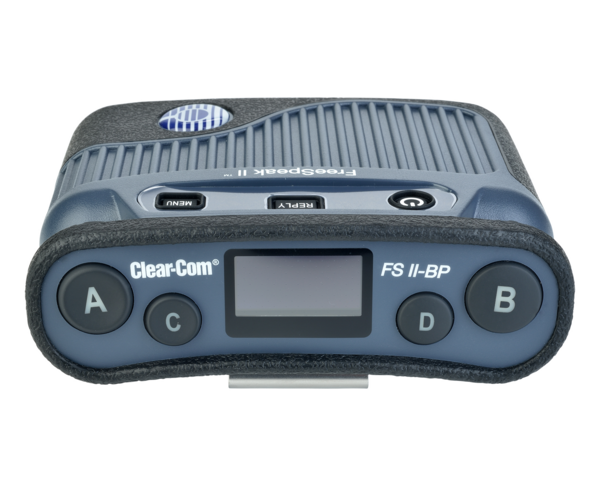

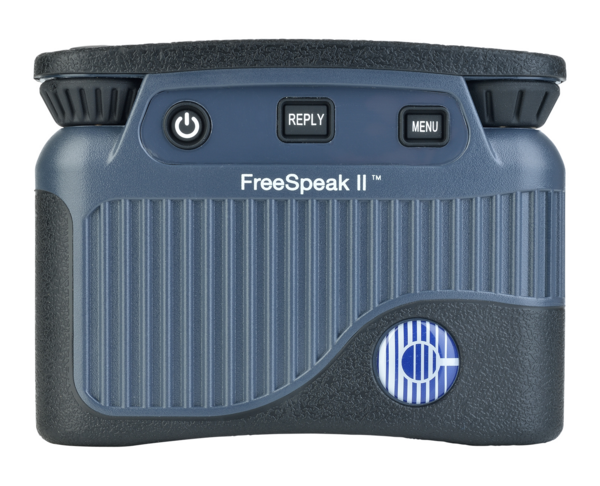

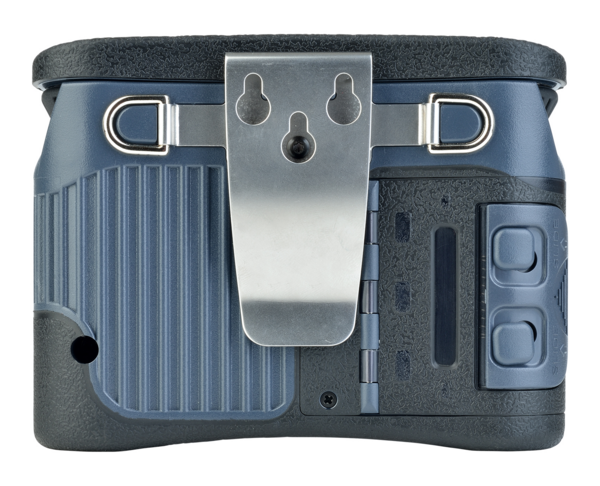

The FSII-BP19-X5 is a water-resistant beltpack designed to operate within the ISM license-free 1.9 GHz frequency range. It supports audio transmission with high bandwidth to maintain clear intelligibility.
This model supports Bluetooth headset connectivity when running firmware version 5.3.32.0 or higher.
Features:
- Compatible with FreeSpeak BASE-II, FreeSpeak Edge Base, Arcadia Central Station, Eclipse HX via E-IPA cards
- 1.9, 2.4 and 5.0 GHz beltpacks operate on a single system
- Supports up to 200 beltpacks per system
- Encoder volume swap between A&C and B&D
- Listen again message replay
- Simple 2-channel partyline to 5-channel intercom on the same beltpack
- Over-the-air beltpack registration
- 1.9 GHz radio frequency
- Typical range 300 ft (90 m), outdoor range 800 ft (240 m)
- Robust radio link for high multipath or reflective environments
- Bluetooth headset support up to version 5.1
- IP53 rating for wet and dusty conditions
- 18+ hour battery life
| Audio Bandwidth | 200Hz-7.5KHz |
|---|---|
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 4 pushbuttons, a reply button and 2 rotary controls |
| Enter/Answer-Back Button | 1 |

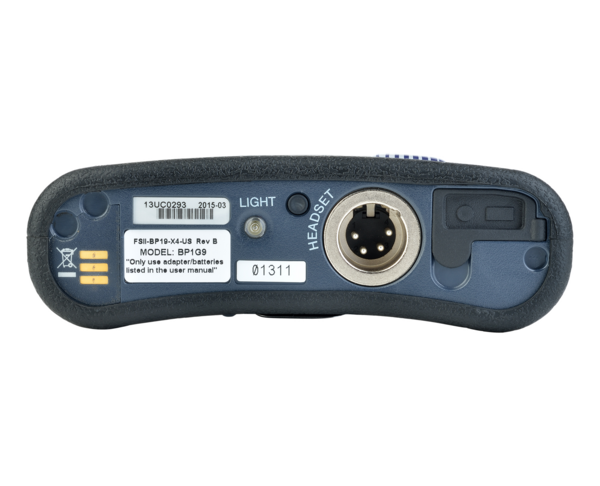

| Headset Connector | 5-pin female |
| Headset Voltage | Maximum of ~+8dBu as set by firmware |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Headset Limiter | Selectable from beltpack menu |
| Modulation | GFSK, TDMA frame 10ms Full and Long slot |
×
×
×
×
