FSII-BP19-X5-US | FREESPEAK II DIGITAL WIRELESS BP X5 US: DIGITAL WIRELESS BELTPACK INCLUDING FOUR TALK AND LISTEN
FSII-BP19-X5-US
FREESPEAK II DIGITAL WIRELESS BP X5 US: DIGITAL WIRELESS BELTPACK INCLUDING FOUR TALK AND LISTEN
Click image to enlarge
FSII-BP19-X5-US
FREESPEAK II DIGITAL WIRELESS BP X5 US: DIGITAL WIRELESS BELTPACK INCLUDING FOUR TALK AND LISTEN
- UM : EA

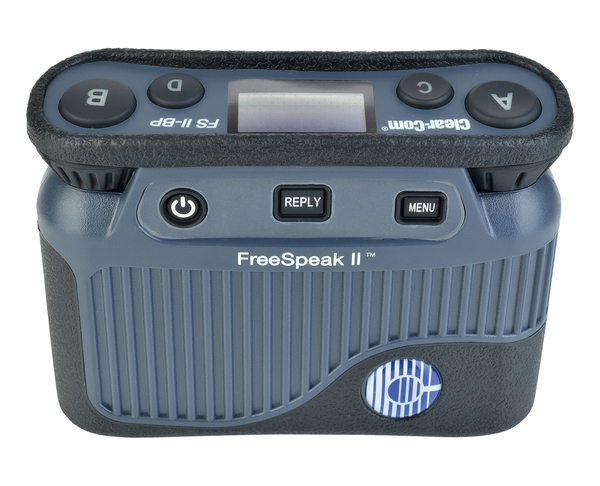

The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9 GHz frequency range. Featuring the “Clear-Com Sound”, the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.
FreeSpeak II 1.9 beltpacks with firmware version 5.3.32.0 upwards support Bluetooth headsets.
Features:
- Functions with FreeSpeak BASE-II, FreeSpeak Edge Base, Arcadia Central Station, and Eclipse HX via E-IPA cards
- 1.9, 2.4, and 5.0 GHz beltpacks operate on a single system
- Supports up to 200 beltpacks on a single system
- Encoder volume swap between A&C and B&D
- ‘Listen Again’ message replay
- Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
- Over-the-air beltpack registration
- 1.9 GHz radio frequency
- Typical range 300 ft (90 m), outdoor range 800 ft (240 m)
- Robust radio link works in high multipath or reflective environments
- FSII 1.9 beltpacks support Bluetooth headset connection up to version 5.1
- IP53 rating for wet and dusty conditions
- 18+ hour battery life
| Audio Bandwidth | 200Hz-7.5KHz |
|---|---|
| No. of Full-Duplex Audio Paths | Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 4 pushbuttons, a reply button and 2 rotary controls |
| Enter/Answer-Back Button | 1 |

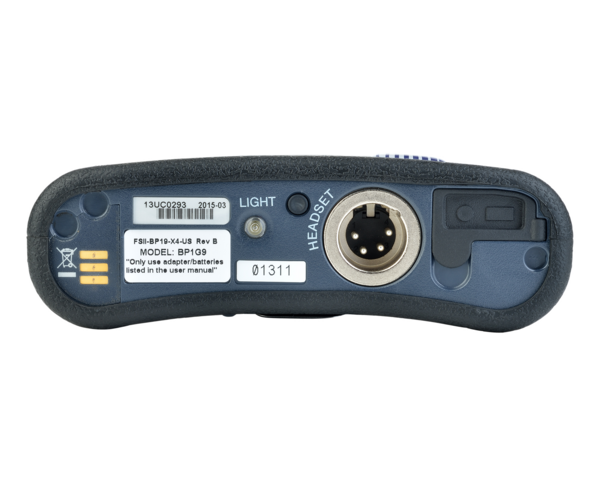

| Headset Connector | 5-pin female |
| Headset Voltage | Maximum of ~+8dBu as set by firmware |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Modulation | GFSK, TDMA frame 10ms Full and Long slot |
| Output Power | (EU/Russia) 10dBm average, (US) 18-20dBm |
×
×
×
×
