FSII-SPL | TRANSCEIVER SPLITTER BOX WITH FIBER OPTION.PROVIDES FIVE TRANSCEIVER CAT5 FEEDS FROM ONE TRANSCEIVER
FSII-SPL
TRANSCEIVER SPLITTER BOX WITH FIBER OPTION.PROVIDES FIVE TRANSCEIVER CAT5 FEEDS FROM ONE TRANSCEIVER
FSII-SPL
TRANSCEIVER SPLITTER BOX WITH FIBER OPTION.PROVIDES FIVE TRANSCEIVER CAT5 FEEDS FROM ONE TRANSCEIVER
- UM : EA
- Estimated Weight: 1.0
The FSII-SPL is a splitter that connects multiple FreeSpeak II transceiver antennas to an Eclipse HX matrix (via E-QUE-HX card) or a FreeSpeak II base station. The splitter provides up to five antenna feeds from one antenna port and has an SFP fiber slot for fiber connectivity.
Features:
- Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards
- Provides 5 FSII transceiver feeds on one port on FSII base station or E-IPA-HX card
- SFP fiber slot for fiber link to FSII base station or as fiber bridge between FSII-BASE-II stations and Eclipse HX frames
- Supports multi-mode and single-mode fiber
- Configure settings using DIP switches
- IP-63 water resistant for outdoor use

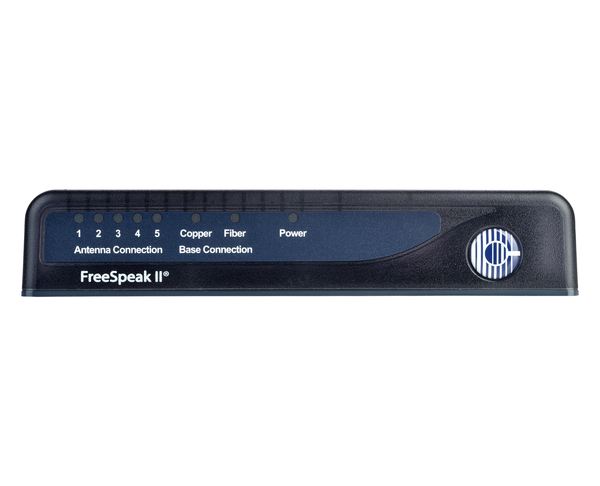

- LED status indicators on front and back
- Mic stand or wall mount orientation with metric and imperial threads

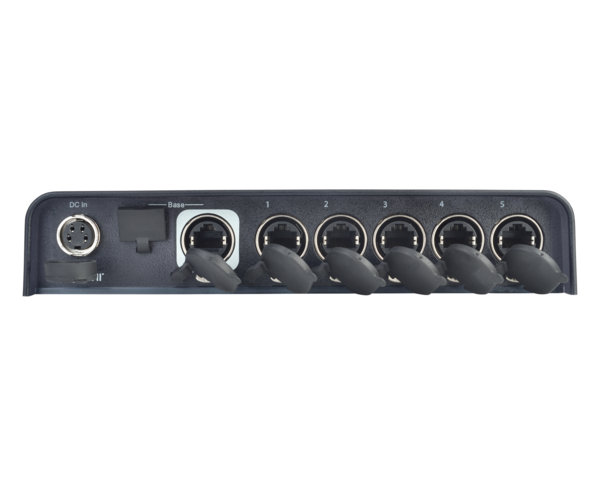

| Transceiver Antenna Connections | 5 Ethercon RJ45, each with yellow LED indicators on front and back |
|---|---|
| Matrix Connections | 1 Ethercon RJ45, with yellow LED indicator on front and back |
| Fiber Connections | 1 SFP port |
| Environmental | IP63 water resistance for outdoor use +32° to +122°F (0° to +50°C) |
